Electric Bike Conversion Kit with 20Ah/24Ah Battery, Rear Hub Motor, and 4.0-inch Tire for 20” or 26” Snow Fat Bikes

Transform your standard bicycle into a powerful electric fat bike with this 48V 1000W conversion kit. Designed specifically for fat tire bikes with 20" or 26" wheels, this kit provides robust performance, perfect for handling snow, sand, and rough terrains. It includes a high-capacity Hailong battery available in 20Ah or 24Ah options, ensuring long-lasting power and reliability. The brushless gear hub motor delivers smooth and efficient power, making your ride effortless whether you're tackling steep inclines or cruising through tough conditions.

Specifications:

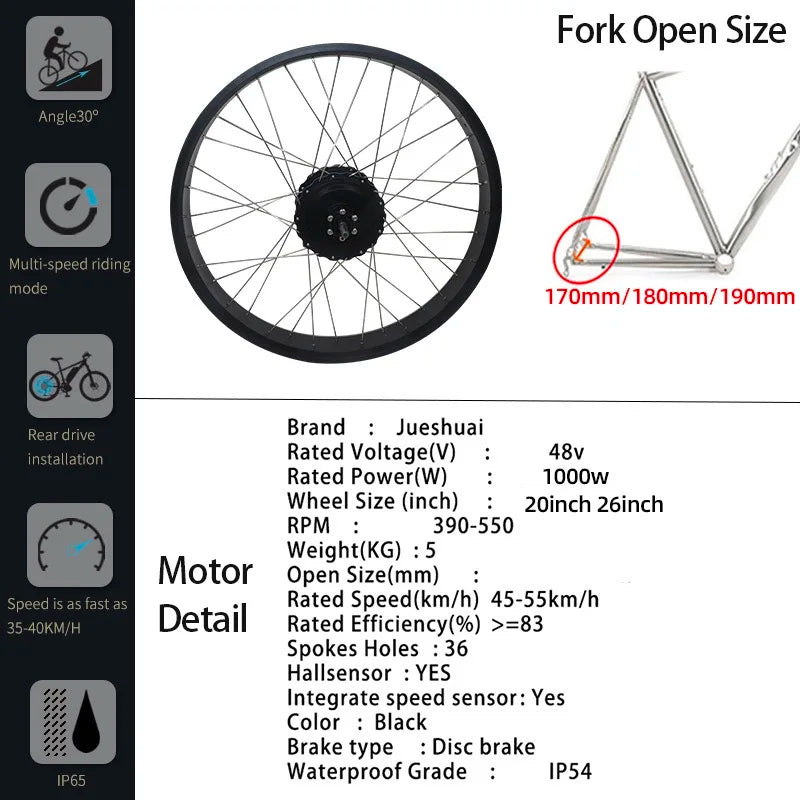

• Brand Name: Jueshuai
• Wattage: 1000W+
• Design: Brushless Gear Hub Motor
• Voltage: 48V
• Mounting Position: Rear Wheel Drive
• Motor Type: Brushless Gear Hub Motor

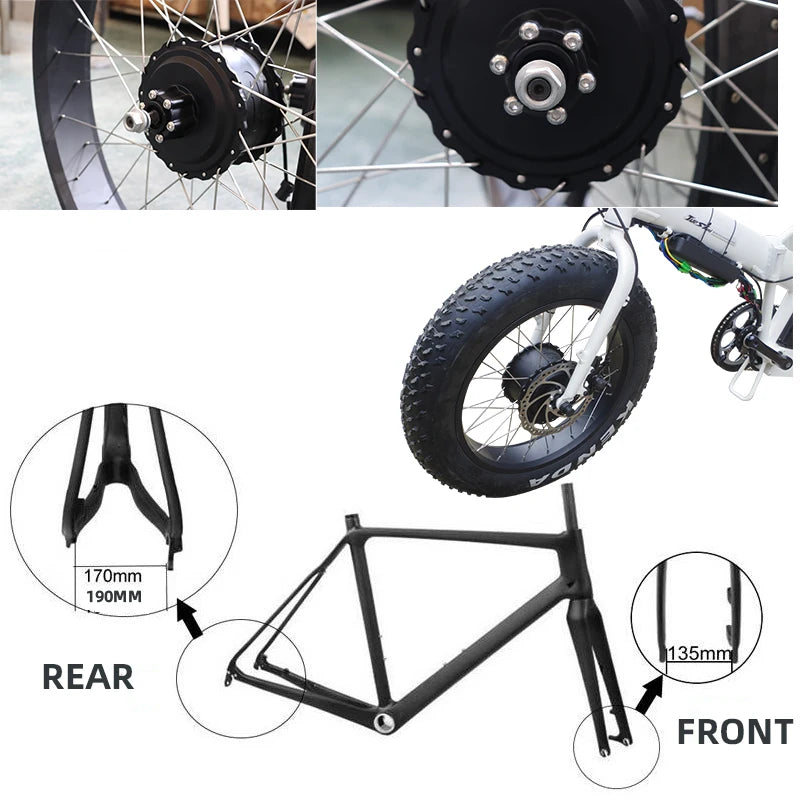

• Wheel Size: 20” / 26” with 4.0-inch Fat Tire
• Origin: Mainland China
• High-concerned Chemical: None

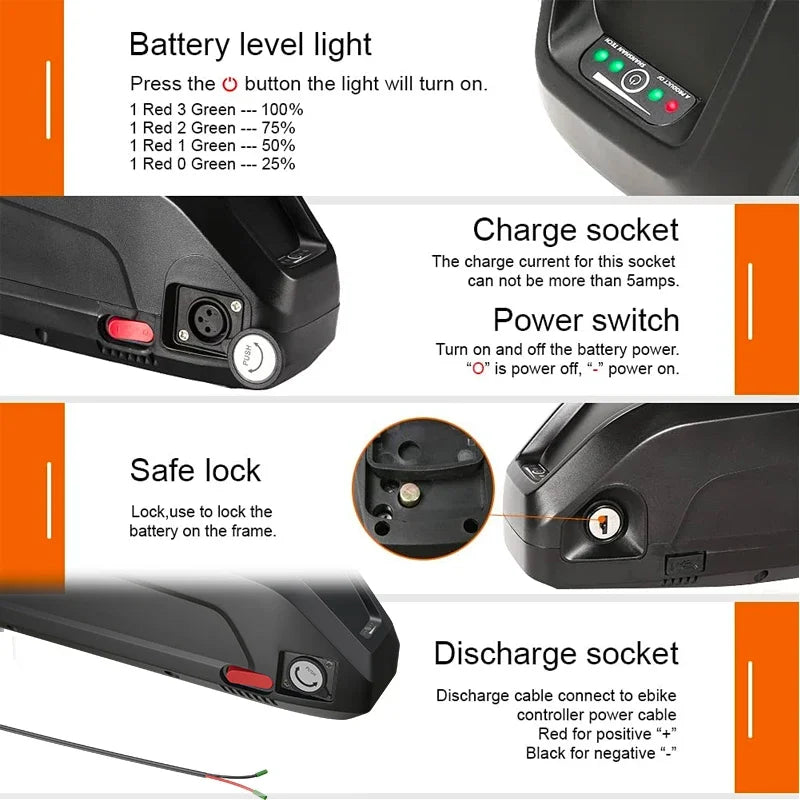

Battery Details:

48V 20Ah Hailong Battery

• Normal Voltage: 48V
• Capacity: 20Ah
• Cell Type: 2500mAh cells
• Configuration: 13s8P
• Constant Discharge Current: 20A
• Peak Current: 40A
• Charging Voltage: 54V
• Cut-off Voltage: 36V
• Cycle Life: 1000 cycles
• Operating Temperature: -15°C to 65°C
• Protection Features: Overcharge, over-discharge, overcurrent, short circuit, balance

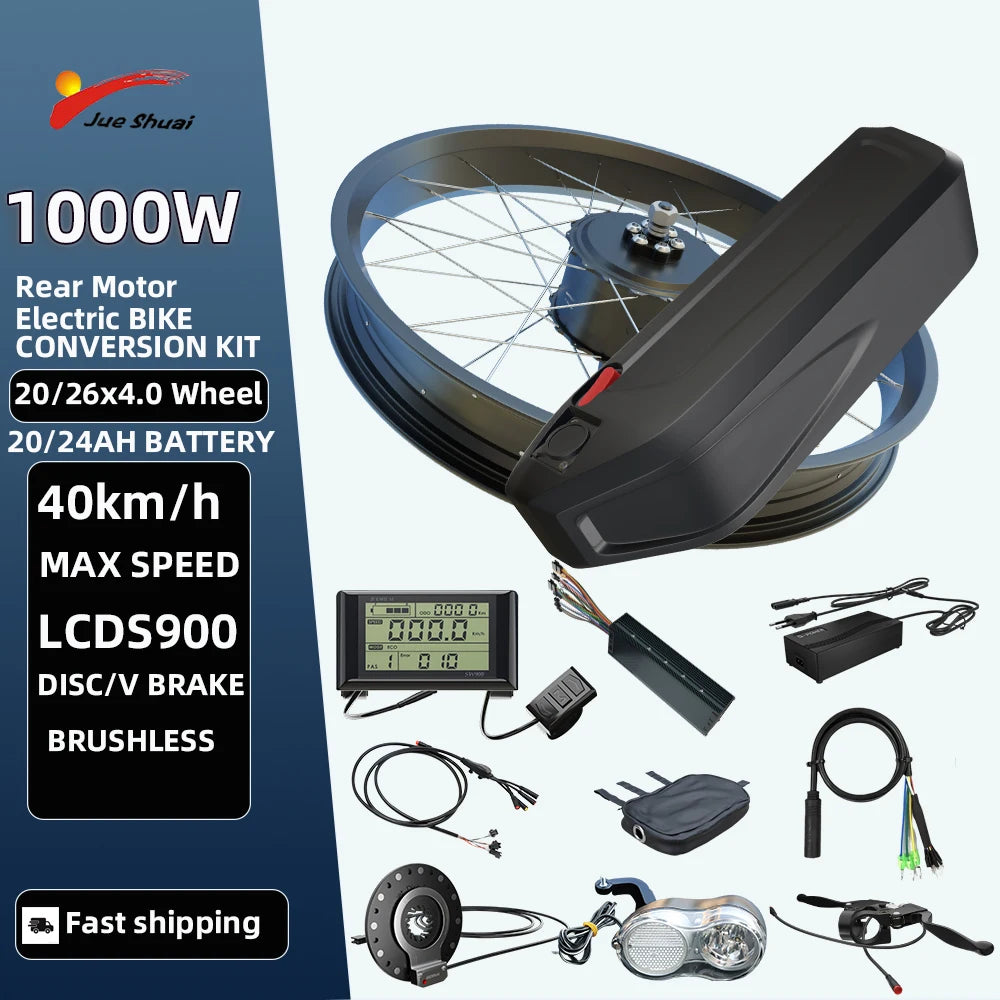

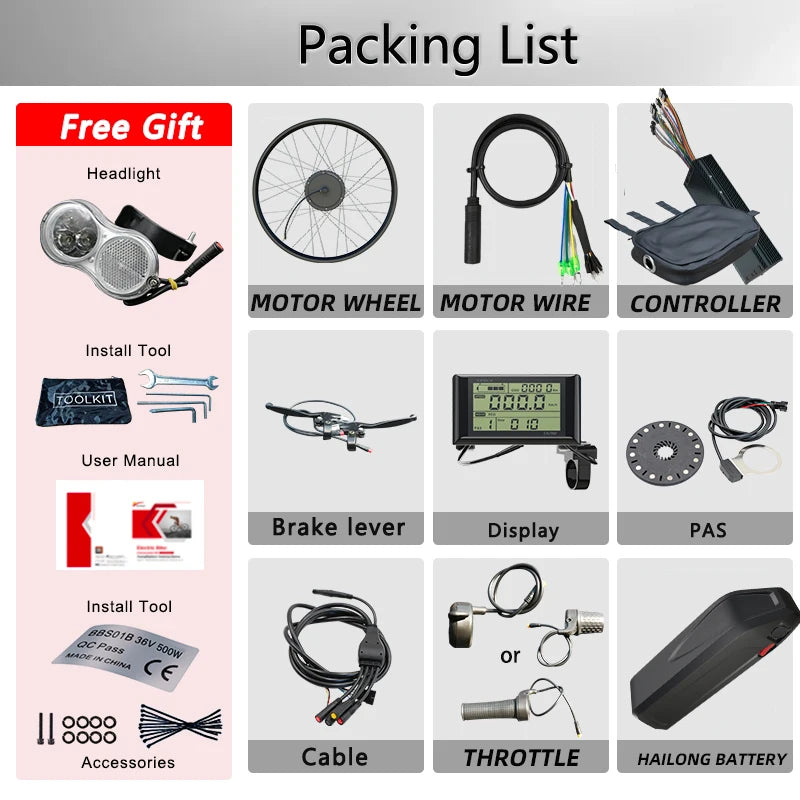

Package Includes:

1. Rear Wheel: 48V 1000W Fat Tire Motor (20" or 26" size)
2. Lithium Battery: 48V 20Ah Hailong Battery
3. Battery Charger: European Standard (with conversion plug for non-European regions)
4. Speed Sensor & Disc Plate (PAS)
5. S900 LCD Display
6. Waterproof Main Cable
7. Brake Levers/Brake Sensors: Power Cut-off
8. Throttle: Choice of Thumb Throttle, Half Twist, or Full Twist
9. Controller
10. Controller Box
11. Headlight
12. **Other Accessories

Order Instructions:

Please specify your preferences when placing an order:

1. Motor: 48V 1000W rear motor
2. Brake Type: Brake Lever or Brake Sensor
3. Throttle Type: Thumb, Half Twist, or Full Twist
4. Wheel Size: 20" or 26" Fat Tire

If no preferences are provided, the kit will include brake levers and a thumb throttle by default.
