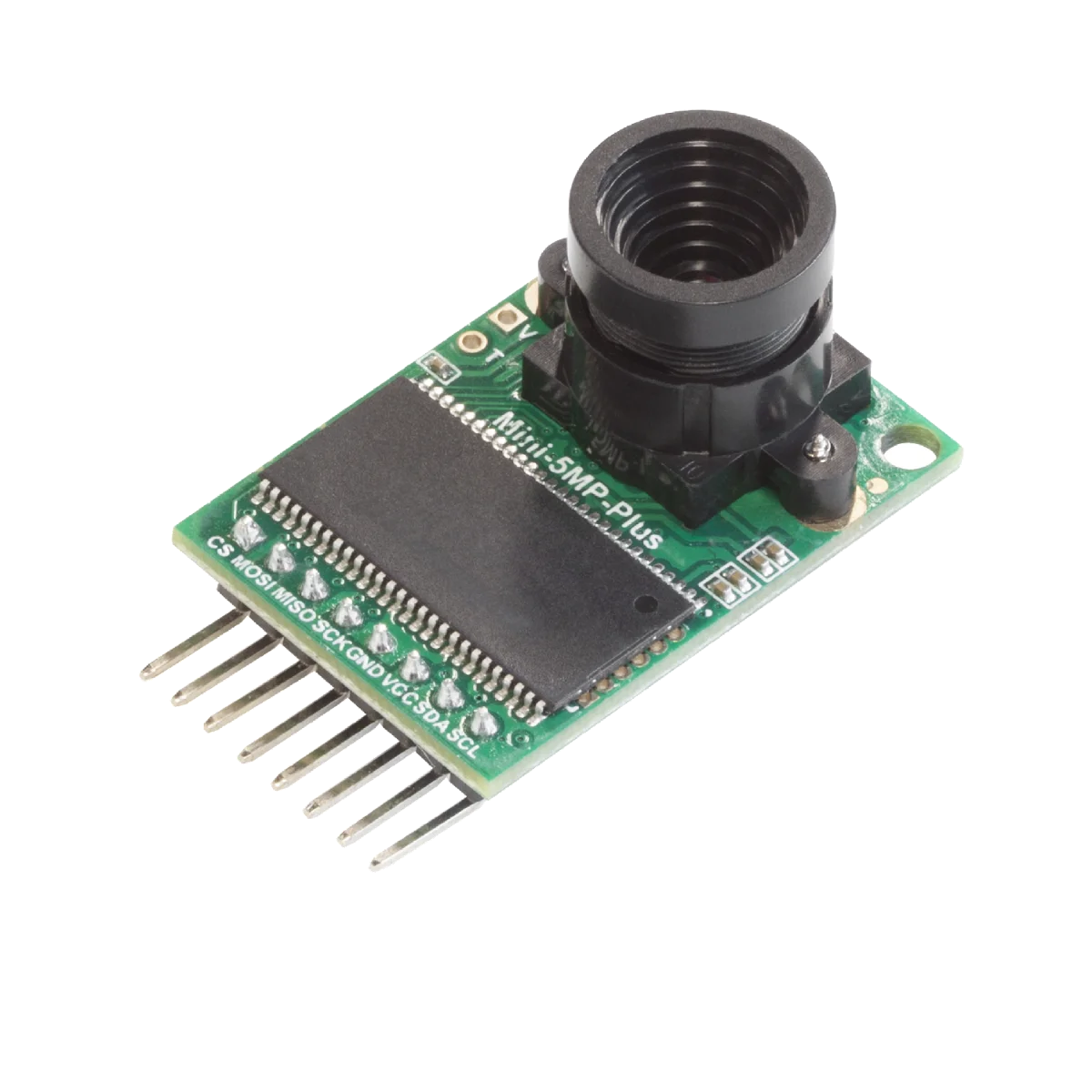

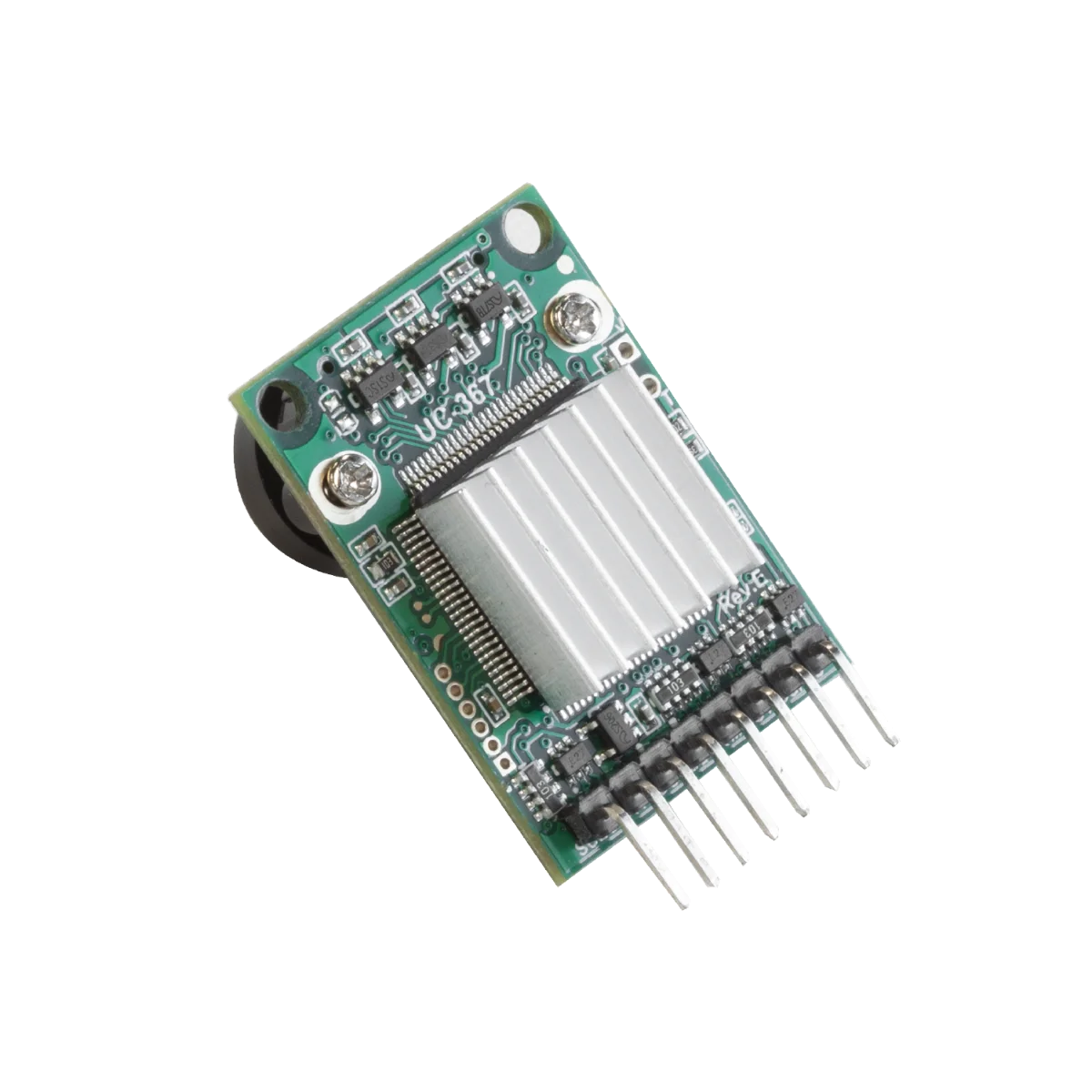

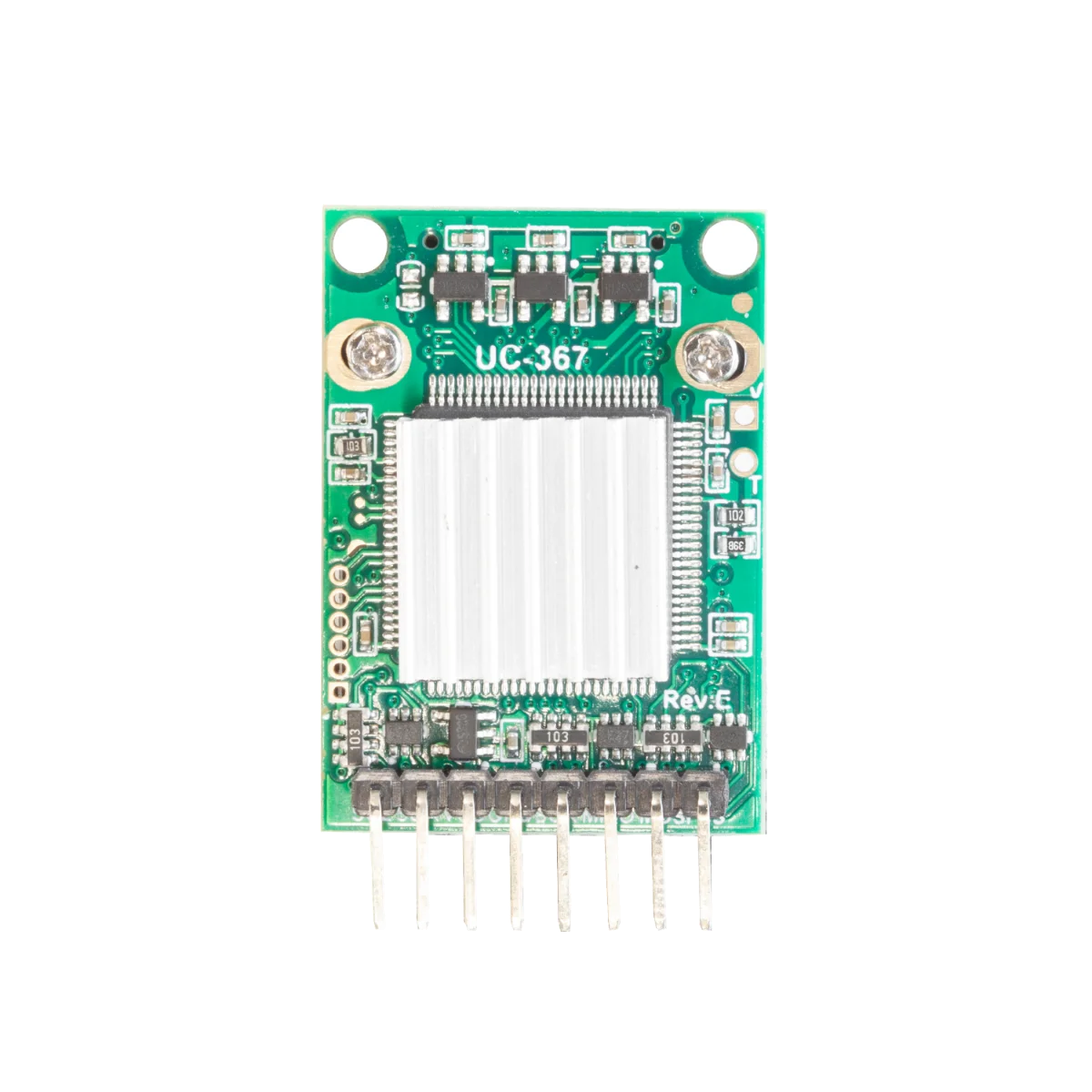

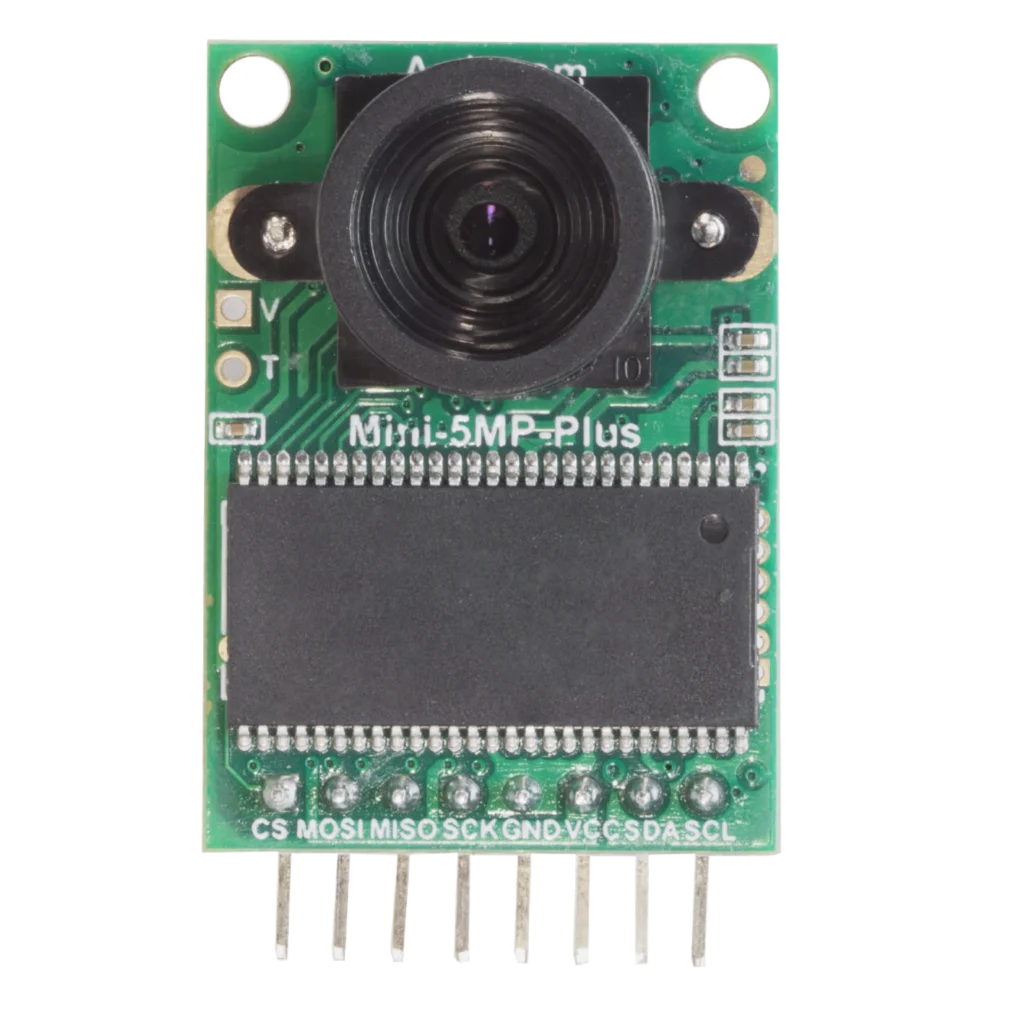

Arducam Mini Camera Module Shield 5MP Plus OV5642 for Mega2560 & Raspberry Pi Pico

The Arducam Mini 5MP Plus Camera Module Shield is a compact, high-definition camera solution designed to simplify the integration of camera functionalities into your Arduino or Raspberry Pi projects. Featuring the OV5642 image sensor, this camera module offers a versatile and powerful option for IoT, robotics, wildlife monitoring, and other embedded systems that require visual input. With its easy-to-use SPI interface and open-source code library, it’s the perfect addition for developers looking to add camera capabilities to platforms with limited resources.

Key Features:

• High-Resolution Sensor: Equipped with a 5MP OV5642 image sensor, providing clear and detailed images with a maximum resolution of 2592x1944 pixels.
• Versatile Compatibility: Works seamlessly with Arduino, Raspberry Pi, ARM, DSP, FPGA, and other MCU platforms, making it ideal for a wide range of projects.

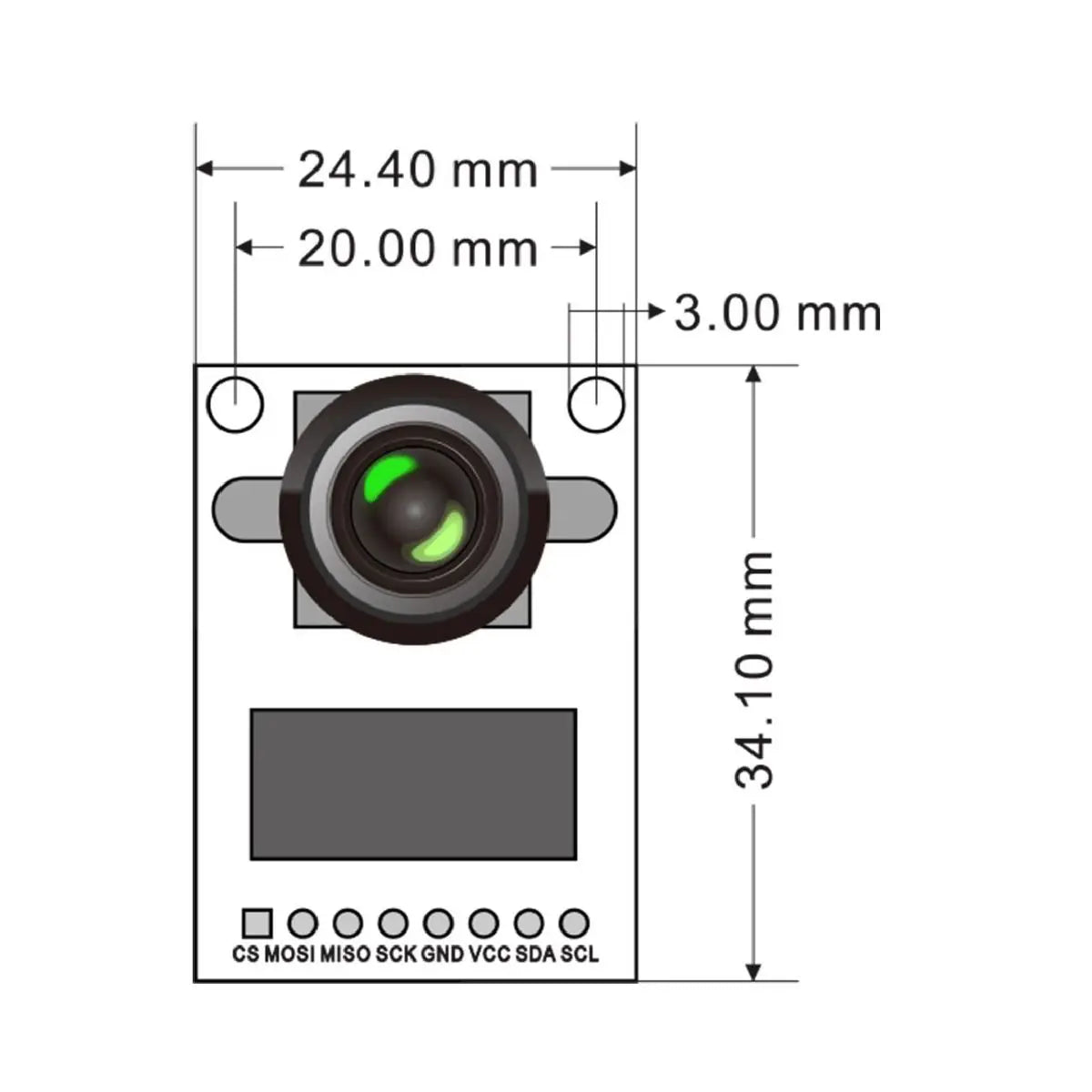

• Compact Design: Small form factor (34 x 24 mm) with a lightweight build, making it suitable for space-constrained applications.
• Replaceable Lens: M12/CS mount allows for easy lens replacement, offering flexibility for different focal lengths and fields of view.
• Multiple Output Formats: Supports RAW, YUV, RGB, and JPEG output formats, ensuring compatibility with various processing needs.
• Power Efficiency: Offers different power modes, including a low-power mode to optimize energy consumption for battery-operated devices.

Technical Specifications:

• Shutter Type: Rolling shutter
• Frame Buffer: 8MByte
• SPI Speed: Up to 8MHz
• Lens Angle: Default M12 lens with 55° field of view
• Operating Temperature: -10°C to +55°C
• Power Consumption: 0.2W to 1.3W depending on the mode

Package Includes:

• 1x Arducam Mini 5MP Plus Camera Module Shield with OV5642 Sensor
• 1x Dupont Cable (Arduino UNO not included)

Applications:

• IoT Cameras
• Robotics Vision Systems
• Wildlife Monitoring Cameras
• Battery-Powered Embedded Devices

Additional Resources:

• User Guide – Arducam 5MP Plus SPI Camera
• Sensor Datasheet – OV5642
• Software Application Note – OV5642 Camera Module
• Arducam Documentation – 5MP Plus SPI Camera

This versatile camera module is the ideal solution for developers and hobbyists alike, offering robust performance and compatibility with a wide range of microcontroller platforms. Perfect for both professional projects and DIY builds.
