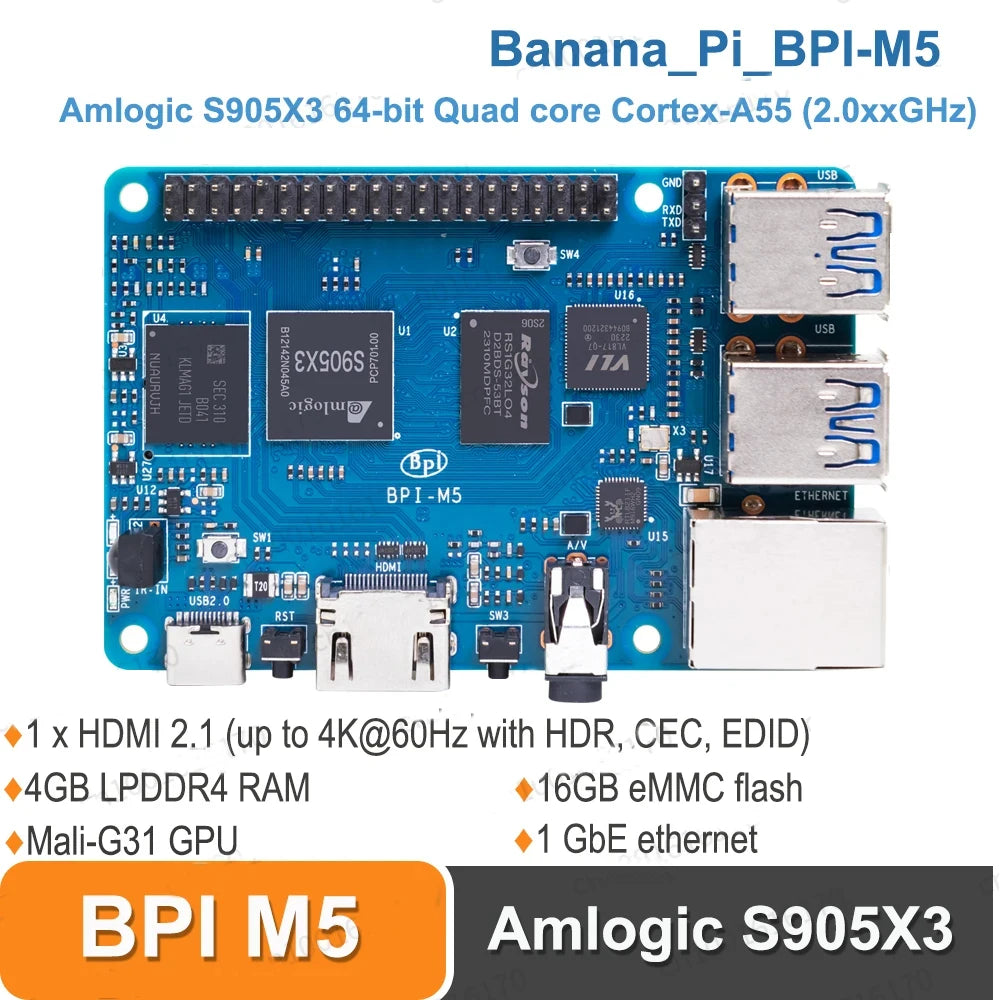

Banana Pi BPI-M5 4GB LPDDR4 Single Board Computer with Amlogic S905X3 – Open-Source Design Compatible with Odroid C4 and Raspberry Pi 4

The Banana Pi BPI-M5 is a next-generation single-board computer, designed for developers, hobbyists, and educators. Powered by the Amlogic S905X3 Quad-Core Cortex-A55 processor, it provides a robust platform for a variety of applications, from DIY electronics projects to professional-grade development. The integrated Mali-G31 MP2 GPU enhances its graphical capabilities, making it suitable for multimedia applications, gaming, and other graphics-intensive tasks.

Key Features:

• High-Performance Processor: Equipped with an Amlogic S905X3 Quad-Core Cortex-A55 CPU, running at 2.0GHz, ensuring efficient processing power.
• Enhanced Graphics: Mali-G31 MP2 GPU with four execution engines operating at 650MHz, perfect for high-definition video and graphical tasks.
• Memory and Storage: Comes with 4GB LPDDR4 RAM and 16GB onboard eMMC flash storage, with expansion support via a MicroSD slot.
• Connectivity: Offers 4 USB 3.0 ports, a Gigabit Ethernet port, and optional WiFi connectivity for versatile network options.
• Multimedia Support: Features an HDMI output supporting 4K@60Hz with HDR, CEC, and EDID, along with a 3.5mm audio jack.
• Power Efficient: Operates on 5V/3A power via a USB Type-C connection.

Detailed Specifications:

• Processor: Amlogic S905X3 Quad-Core Cortex-A55 (up to 2.0GHz)
• GPU: Mali-G31 MP2 with 4 execution engines (650MHz)
• Memory: 4GB LPDDR4
• Storage: 16GB eMMC flash, expandable via MicroSD (up to 256GB)
• Networking: 10/100/1000 Mbps Ethernet, optional WiFi via USB dongle
• Video Output: 1 x HDMI 2.0 supporting 4K@60Hz
• Audio Output: HDMI digital output and 3.5mm audio jack
• USB Ports: 4 x USB 3.0
• GPIO: 40-pin header with GPIO, UART, I2C, SPI, and PWM support
• Power Source: 5V/3A via USB Type-C
• Operating System: Supports Android and Linux
• Dimensions: 92mm x 60mm, 48g

Comparison with Similar Products:

The Banana Pi BPI-M5 is positioned as a strong competitor to the Odroid C4 and Raspberry Pi 4, offering similar or enhanced specifications across the board, including the latest ARM Cortex-A55 architecture and more advanced connectivity options. Whether you're choosing it for its powerful processing capabilities, extensive connectivity, or open-source support, the BPI-M5 delivers outstanding value and flexibility.

Ideal For:

• DIY Electronics Projects
• Home Automation
• Educational and Development Purposes
• Multimedia and Gaming Applications

Start your innovative projects with the Banana Pi BPI-M5, a versatile and powerful single-board computer designed to meet a wide range of needs, from casual tinkering to serious development work.
