ESP32-CAM WiFi Bluetooth Development Board with OV2640 Camera Module, Type-C Interface, 4.2 Bluetooth, and CH340/FT232 Chipset

The ESP32-CAM is a powerful, compact development board designed to bring wireless IoT projects to life. Equipped with dual-mode WiFi and Bluetooth capabilities, this board is powered by the ESP32 SoC, featuring a 32-bit LX6 CPU capable of clock speeds up to 240MHz. With its small size and integrated camera module, it is ideal for applications in home automation, security systems, and wireless monitoring.

Key Features:

• High Performance: Powered by a dual-core 32-bit CPU with adjustable clock speeds from 80MHz to 240MHz, providing up to 600 DMIPS of computational power.
• Connectivity: Supports both WiFi (802.11b/g/n) and Bluetooth 4.2 (BR/EDR and BLE), making it versatile for a wide range of IoT applications.
• Camera Module: Includes an OV2640 camera capable of capturing images in JPEG, BMP, and grayscale formats. The camera is supported by a 9-pin GPIO interface and can be easily integrated into various IoT applications.
• Storage: Features 520KB of internal SRAM and an additional 8MB of external PSRAM, ensuring ample memory for processing and storage.
• Power Efficiency: Designed with low power consumption in mind, supporting deep sleep mode with power usage as low as 6mA.
• Flexible Interface: Equipped with UART, SPI, I2C, and PWM interfaces, along with TF card support for additional storage, making it suitable for diverse hardware integrations.
• User-Friendly: The Type-C interface simplifies connectivity and enhances reliability, making it an excellent choice for IoT hardware terminals.

Technical Specifications:

• Working Voltage: 4.75-5.25V (Recommended: 5V)
• Flash Memory: 32mbit
• RAM: 520KB Internal + 8MB External PSRAM
• WiFi: 802.11b/g/n/e/i
• Bluetooth: 4.2 BR/EDR and BLE
• Supported Interfaces: UART, SPI, I2C, PWM
• Camera Resolution: 1600x1200 (UXGA)
• Image Formats: JPEG, BMP, Grayscale
• Operating Temperature: -20℃ to 70℃
• Dimensions: 25mm x 24mm x 5.5mm
• Power Consumption: Deep Sleep: 6mA @ 5V; Light Sleep: 6.7mA @ 5V

Applications:

• Home Automation: Ideal for smart home devices, enabling wireless control and monitoring.
• Security Systems: Can be used for wireless surveillance and remote monitoring.
• Agricultural IoT: Suitable for smart agriculture, providing wireless monitoring and control of farming systems.
• QR Code Recognition: Perfect for wireless QR code scanning and recognition applications.
• IoT Projects: Versatile for various IoT projects requiring reliable wireless connectivity and image capture.

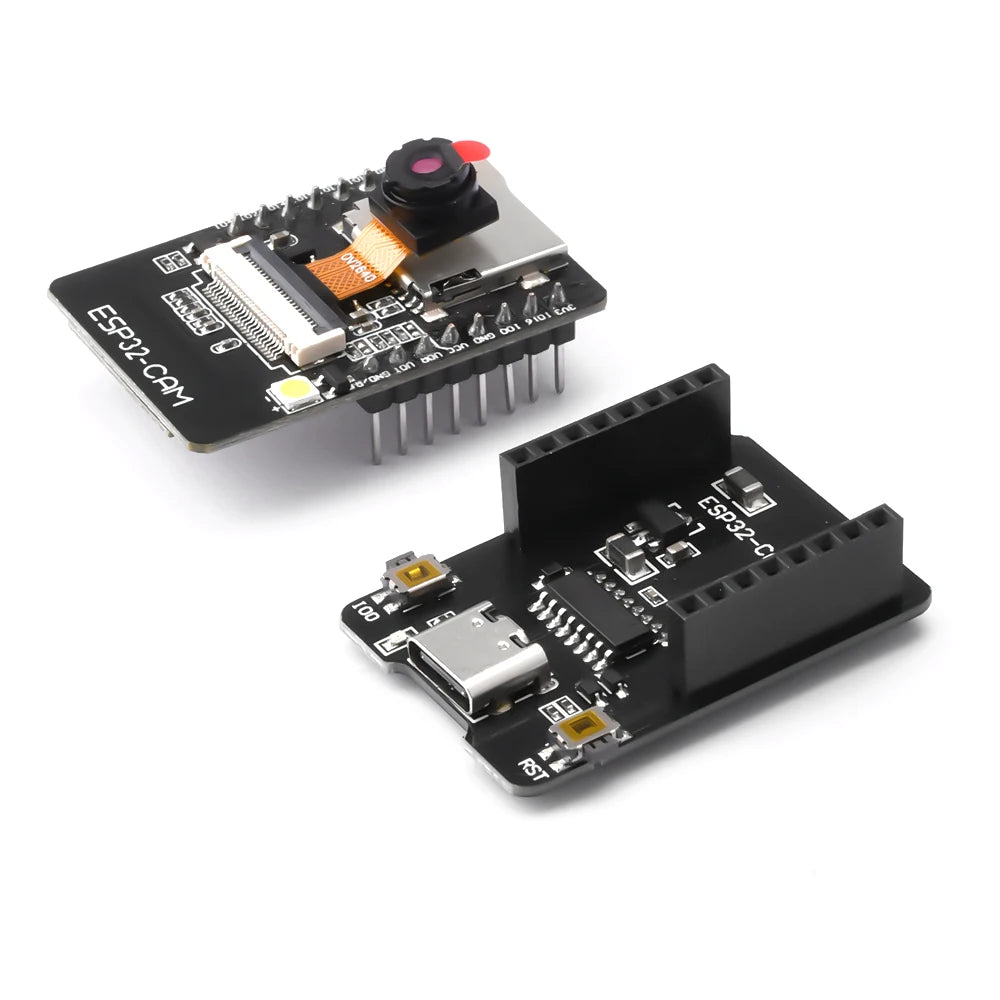

Package Includes:

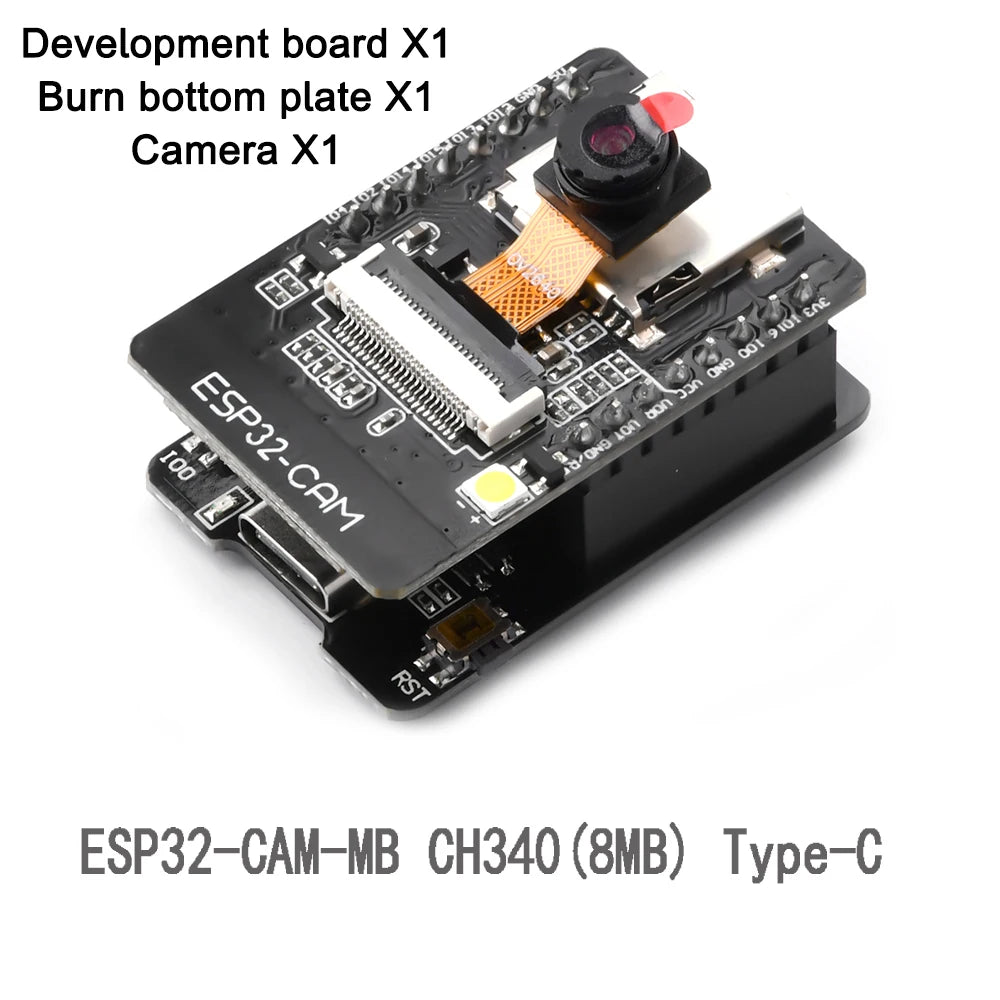

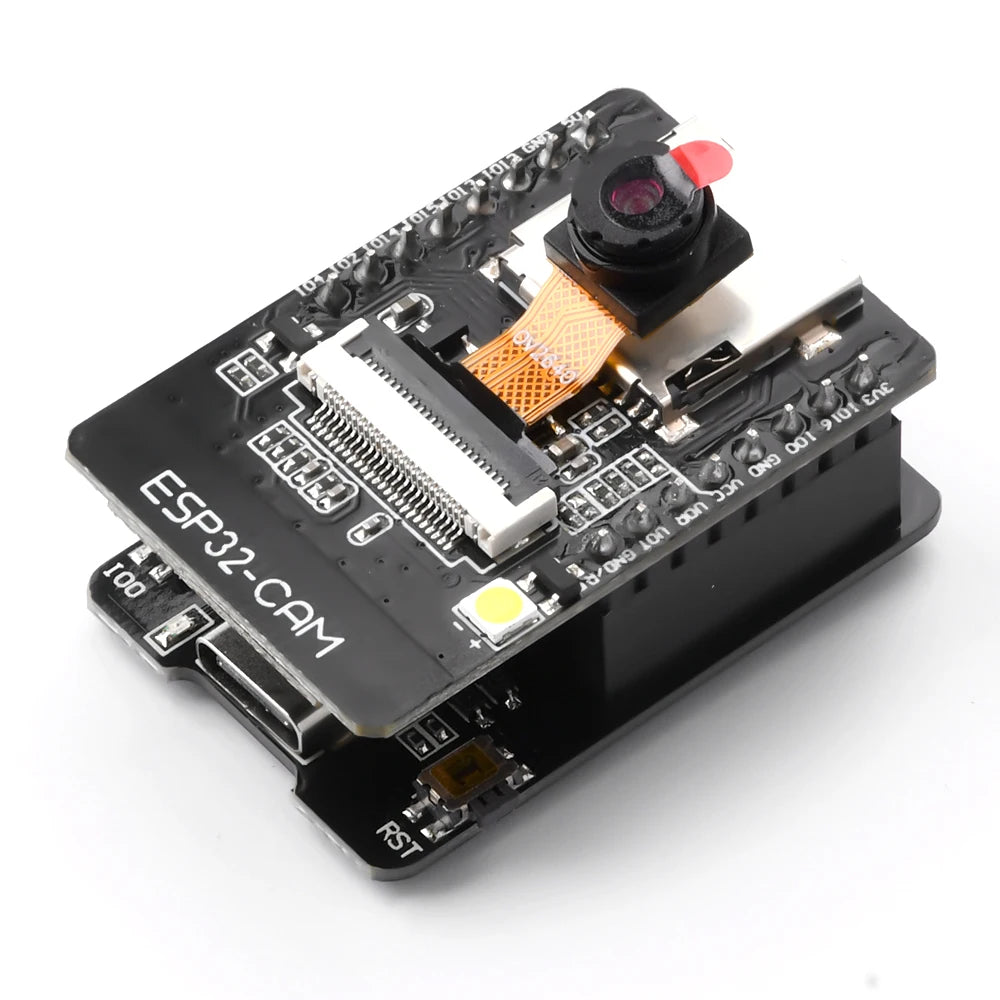

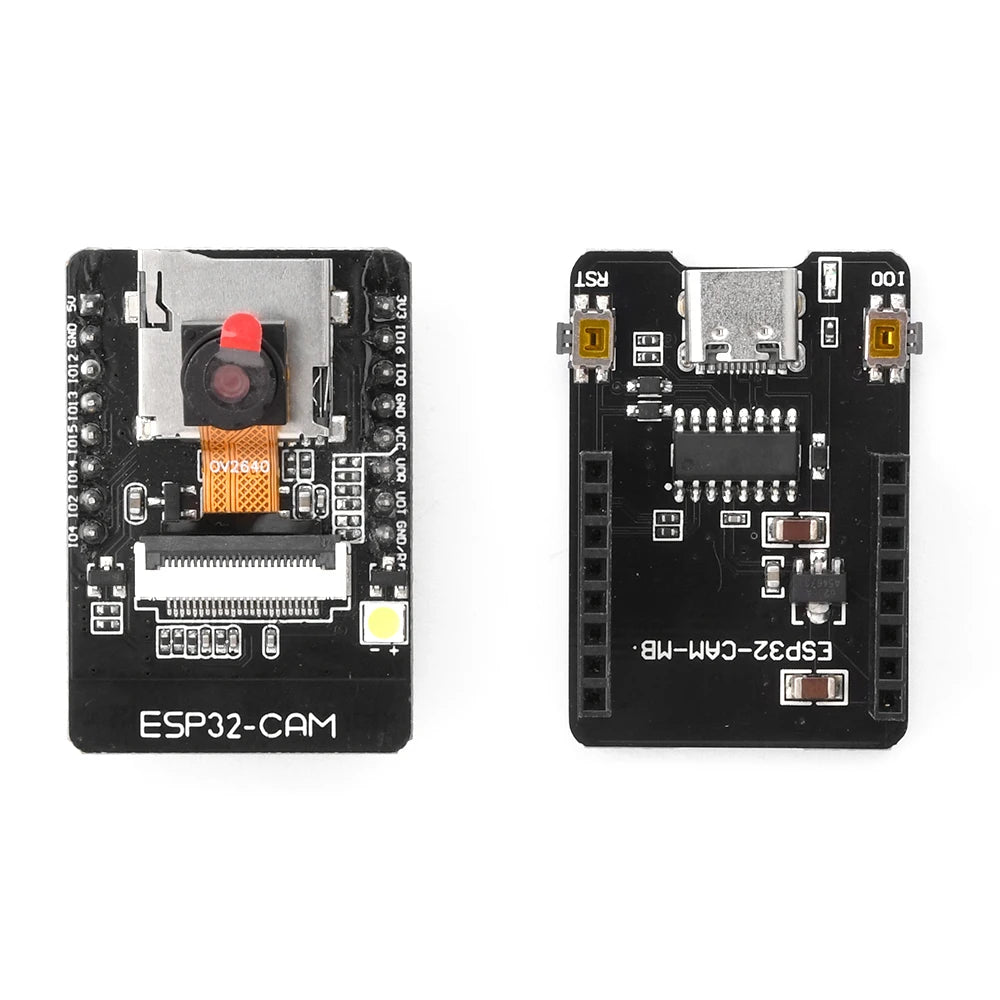

Set 1:

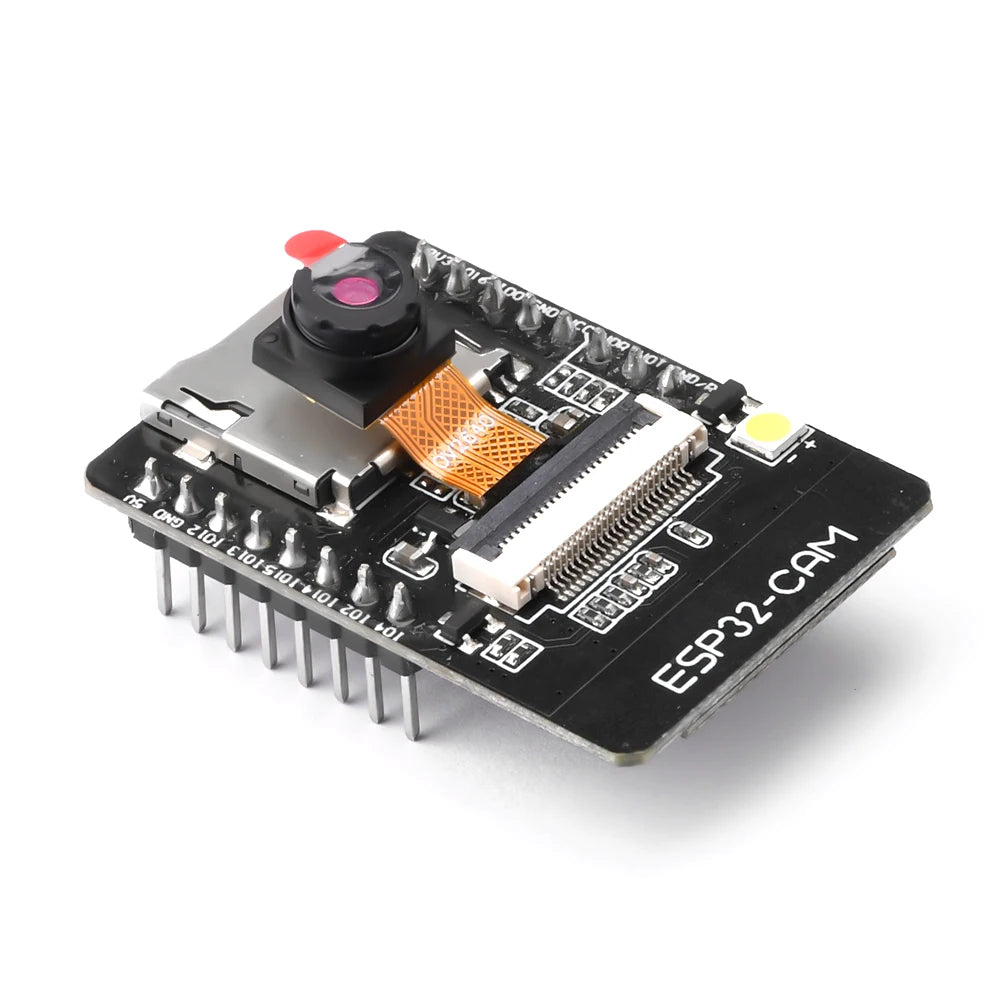

• 1 x ESP32-CAM Development Board

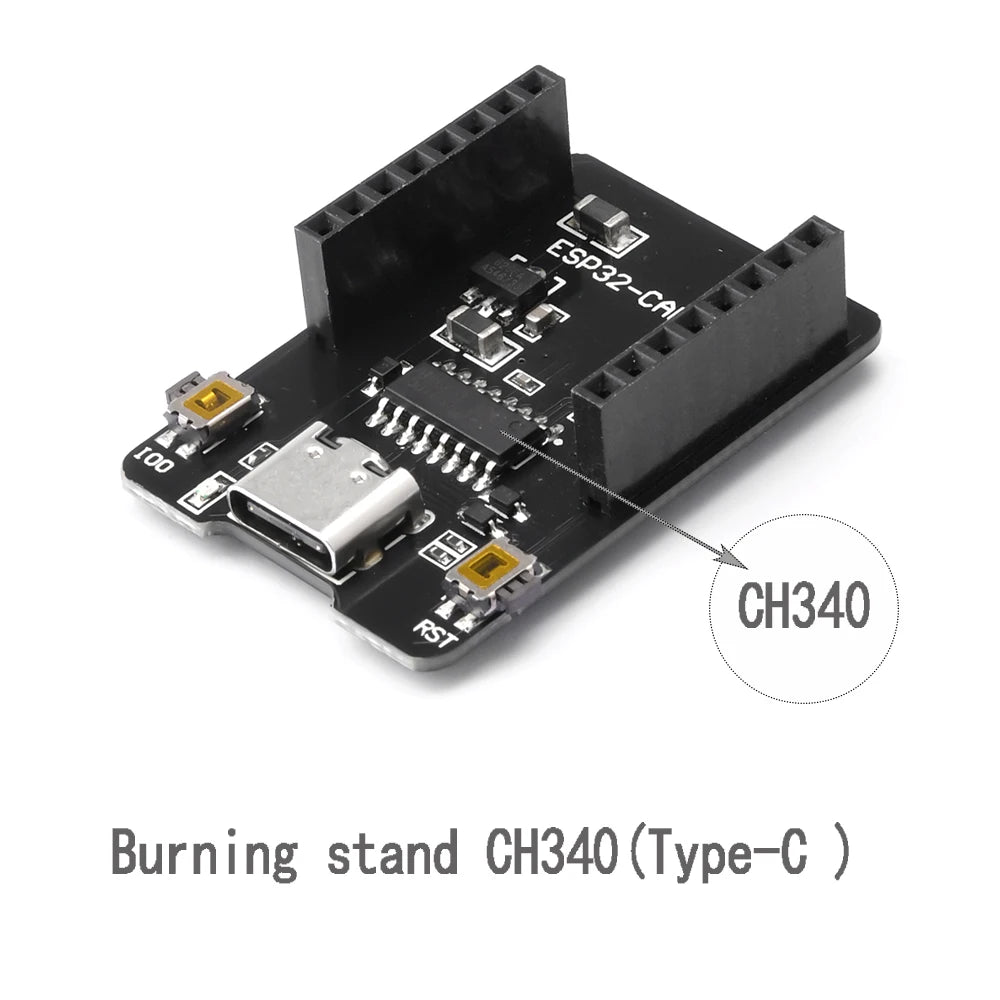

• 1 x Programming Adapter (Type-C Interface)
• 1 x OV2640 Camera Module

Set 2:

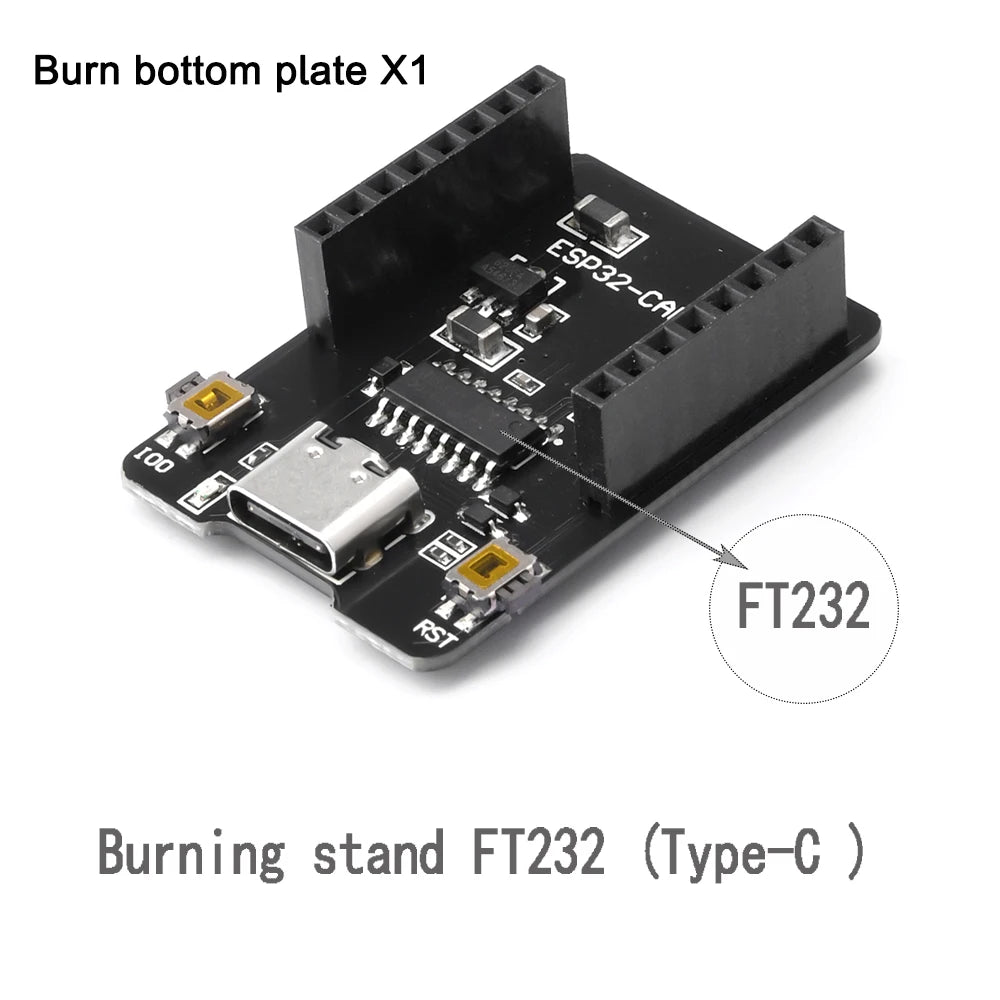

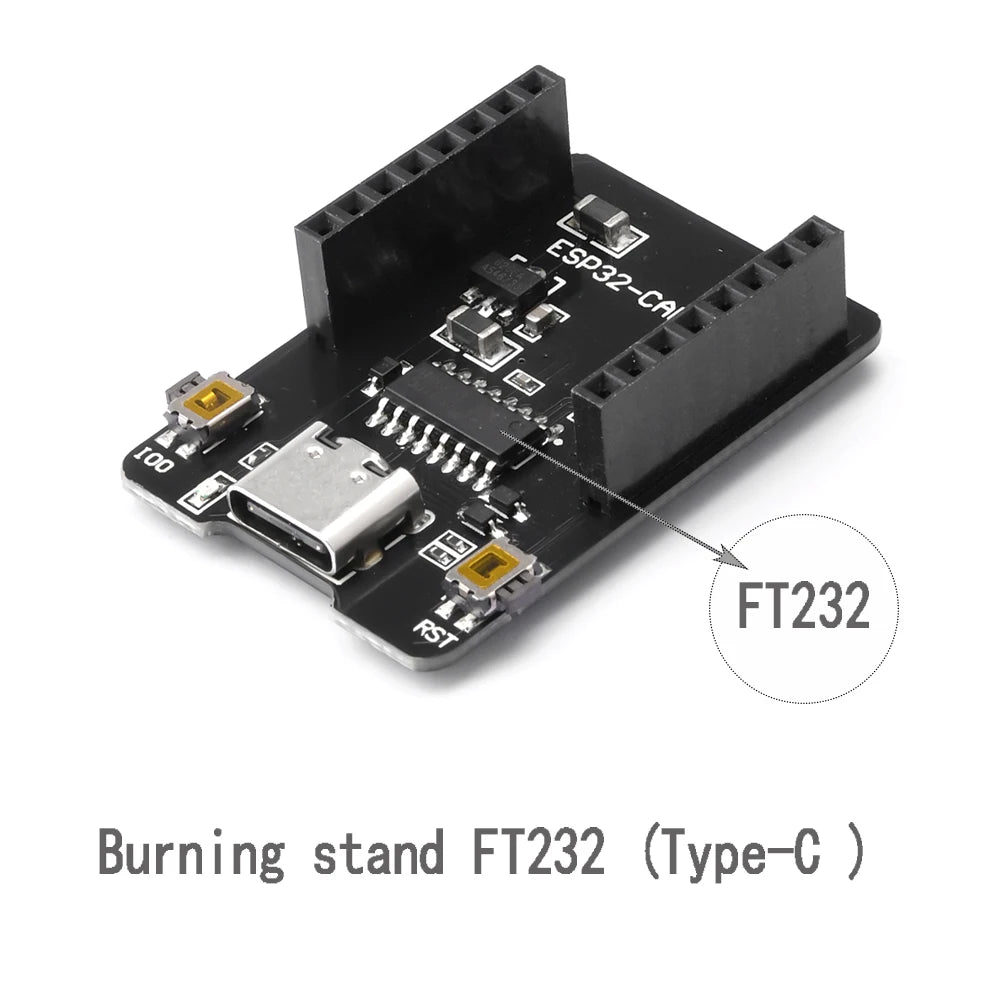

• 1 x Programming Adapter (Type-C Interface)

This module offers robust features for developing wireless IoT applications with advanced imaging capabilities. Its compact design and extensive connectivity options make it a great tool for engineers and hobbyists alike.
