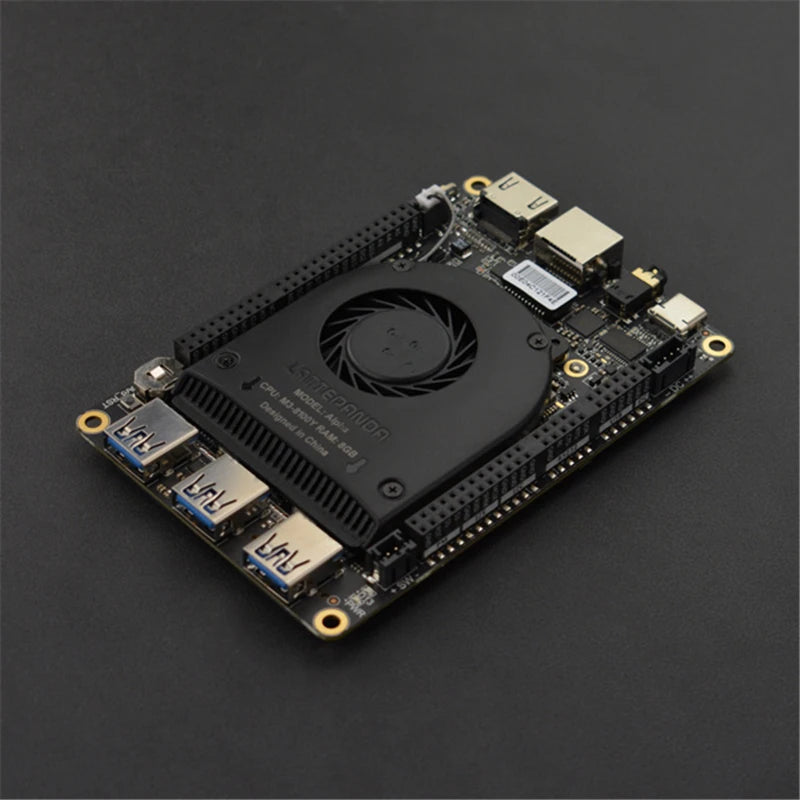

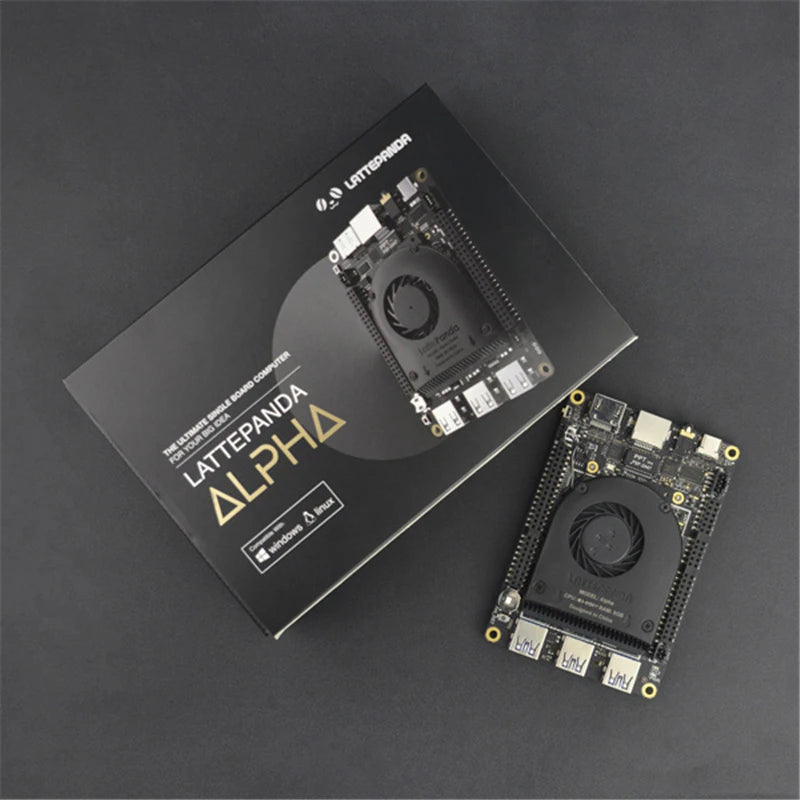

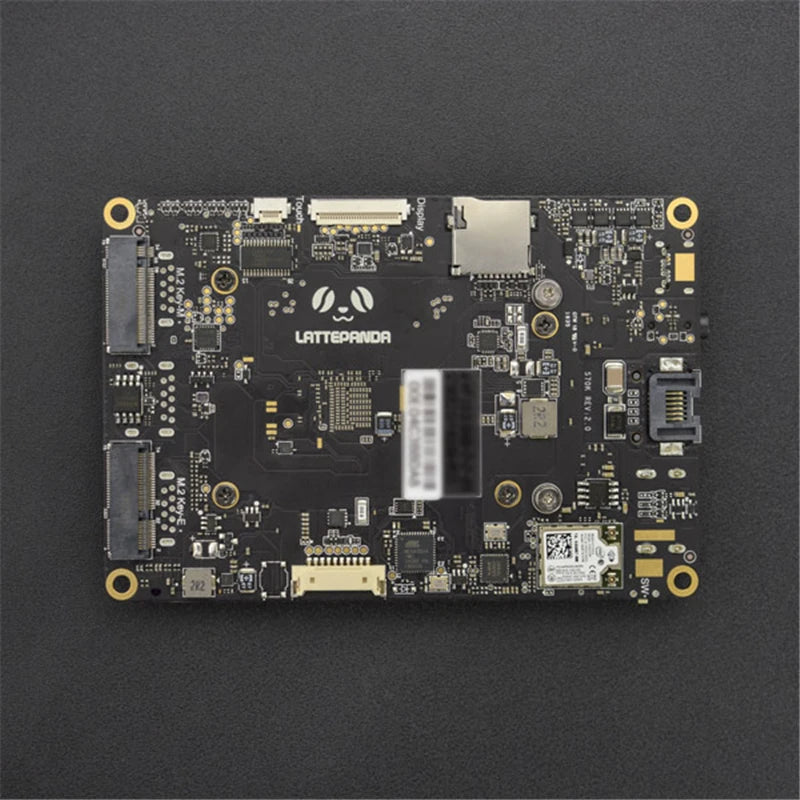

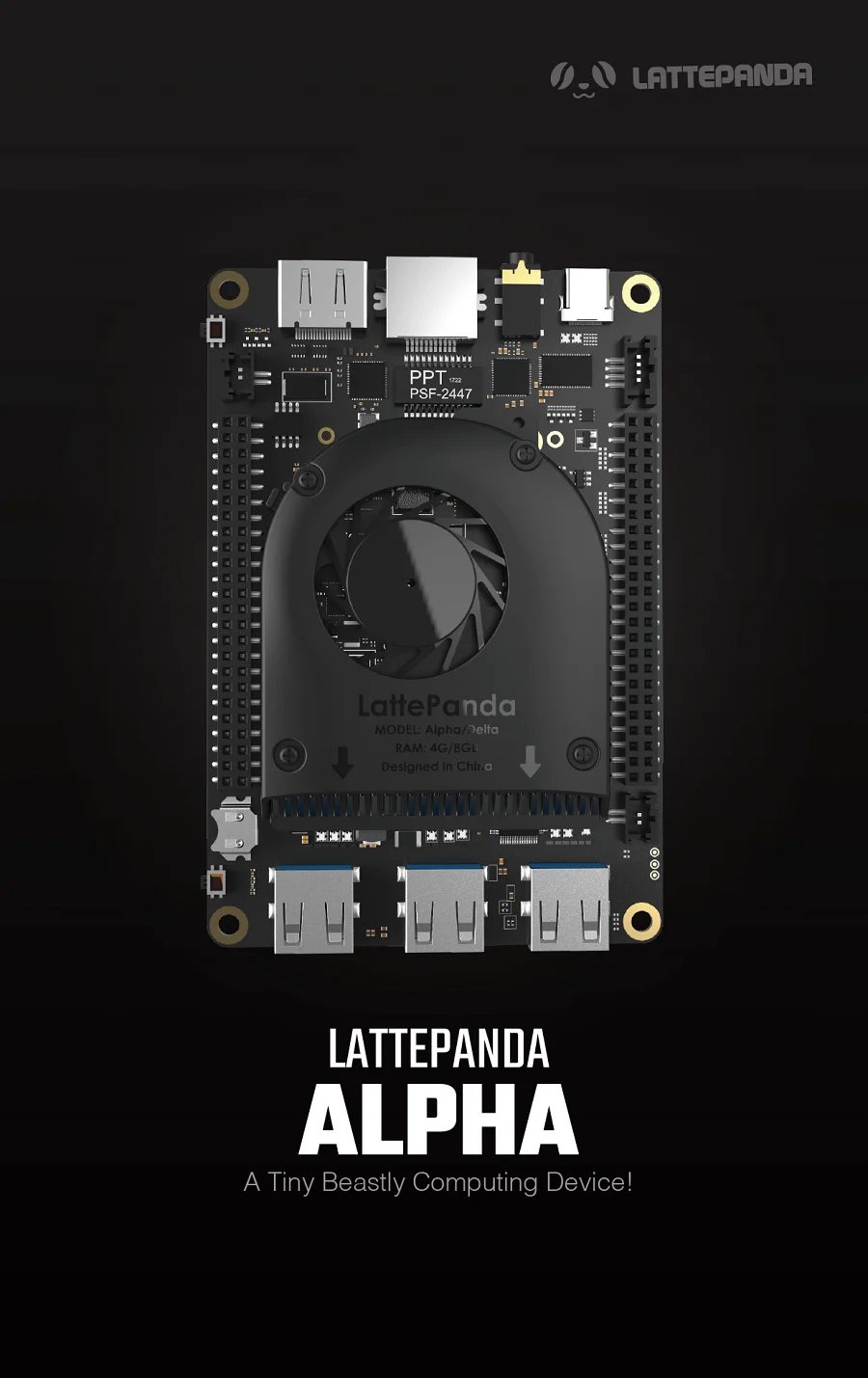

LattePanda Alpha 864s: The Ultimate Compact Windows/Linux Device

CHF 2,129.00

Sale Sold out

Taxes included.

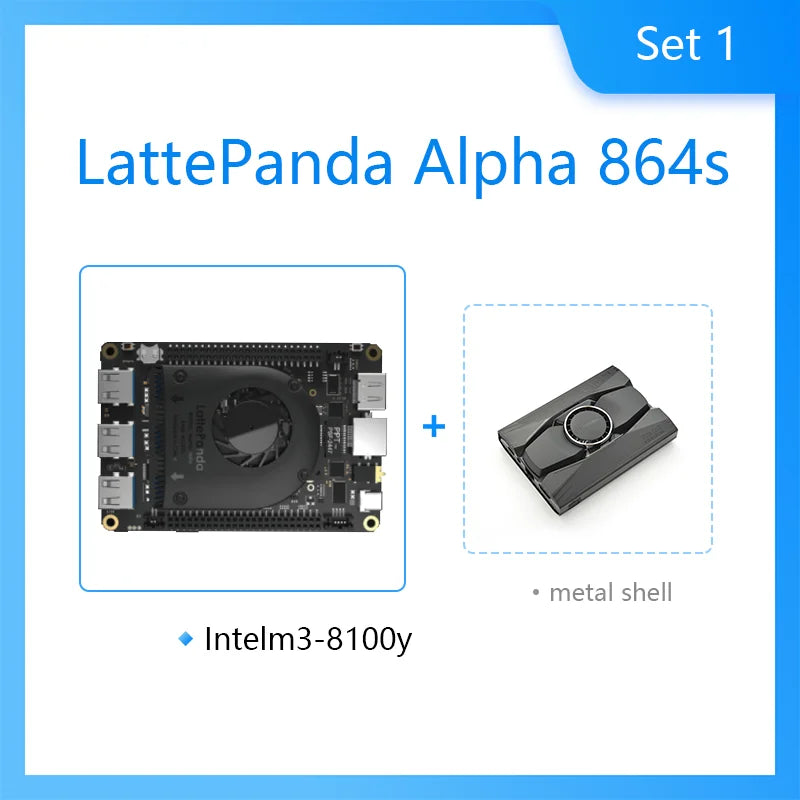

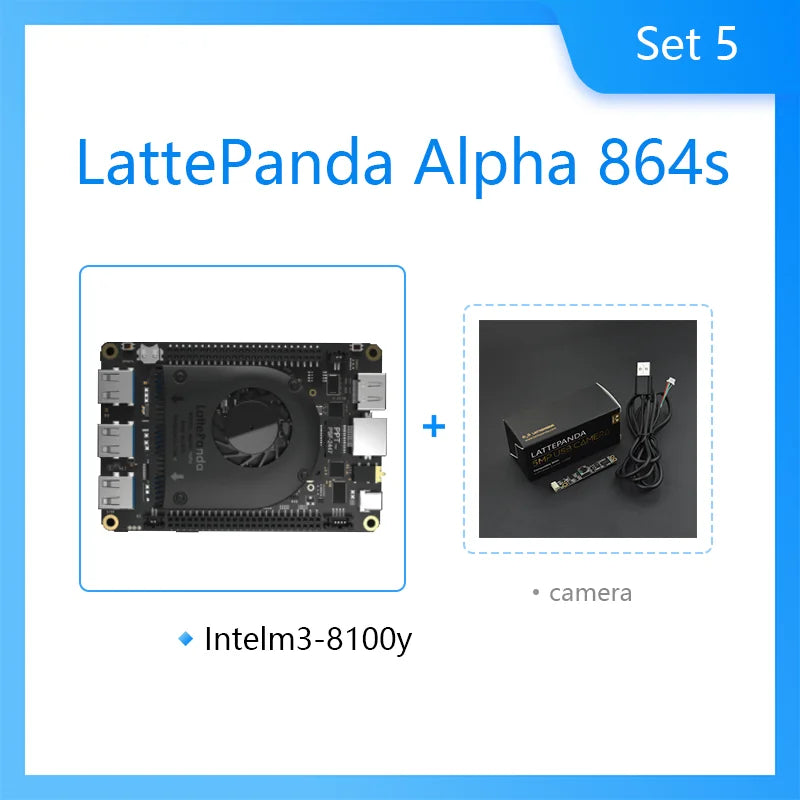

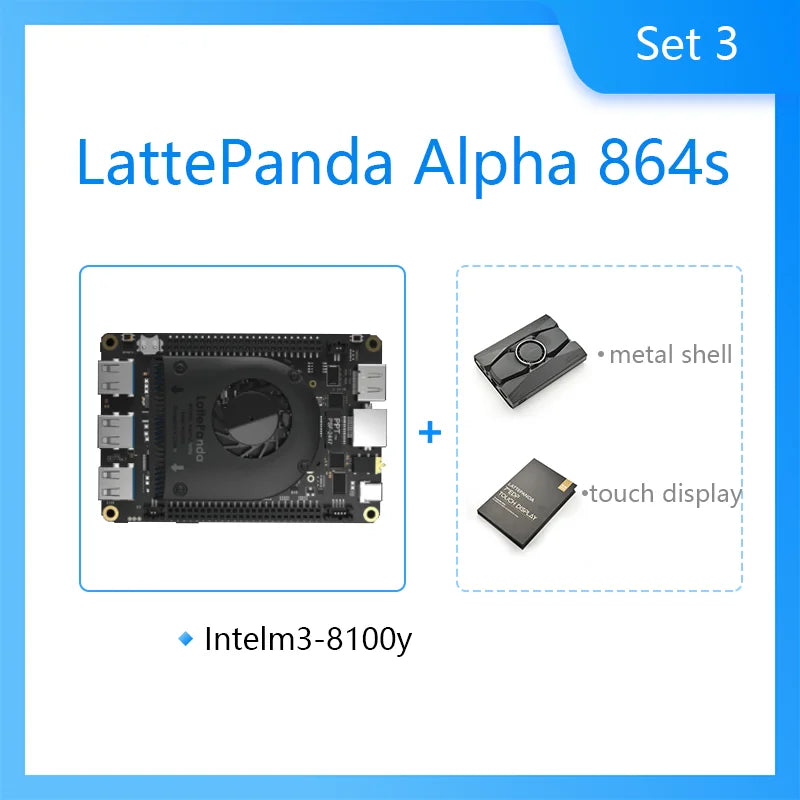

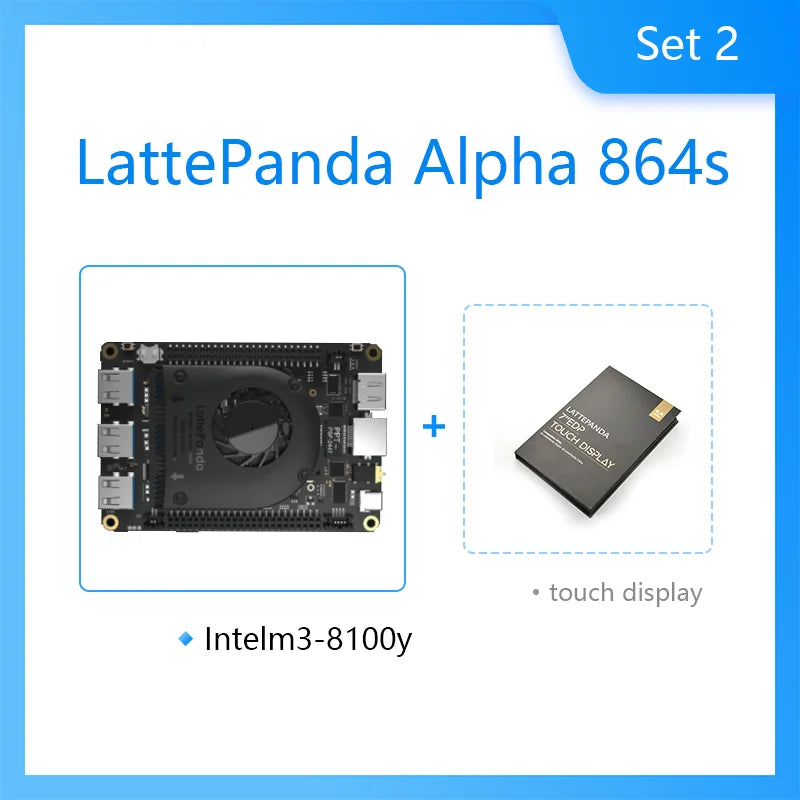

Bundle Set 4 Set 5 Set Set 1 Set 2 Set 3

Ships From CHINA

SPECIFICATIONS

Brand Name: cbhioarpd

Demo Board Type: ARM

Hign-concerned Chemical: None

Origin: Mainland China

Certification: CE

INTRODUCTION

Latest Updates(2019/02/03):
- Due to Intel's capacity problems, the supply of Alpha's CPU M3-7y30 will face a continuous shortage. To solve the problem, LattePanda team updated its CPU to Intel 8th M3-8100y, correspondingly, Alpha 800 models will be upgraded to Alpha 800s. It will improve the whole performance 30% on the basis of previous 7th M3-7y30 version.

Alpha Edition - Generally refers to the leader in a wolf pack, α / Alpha. It will also be the leader in the LattePanda series, the most powerful in performance. Known as the leader of the Pandas, or "AlphaPanda" for short.

The Core m3 processor is the perfect choice for superior performance and low power consumption. We have shrunken this computing monster from a laptop to the size of a phone.

We are shipping Windows 10 Pro this time but we have also added Linux Compatibility, Windows and Linux dual OS support.

Because we saw the different needs of users from our 1st Gen products.

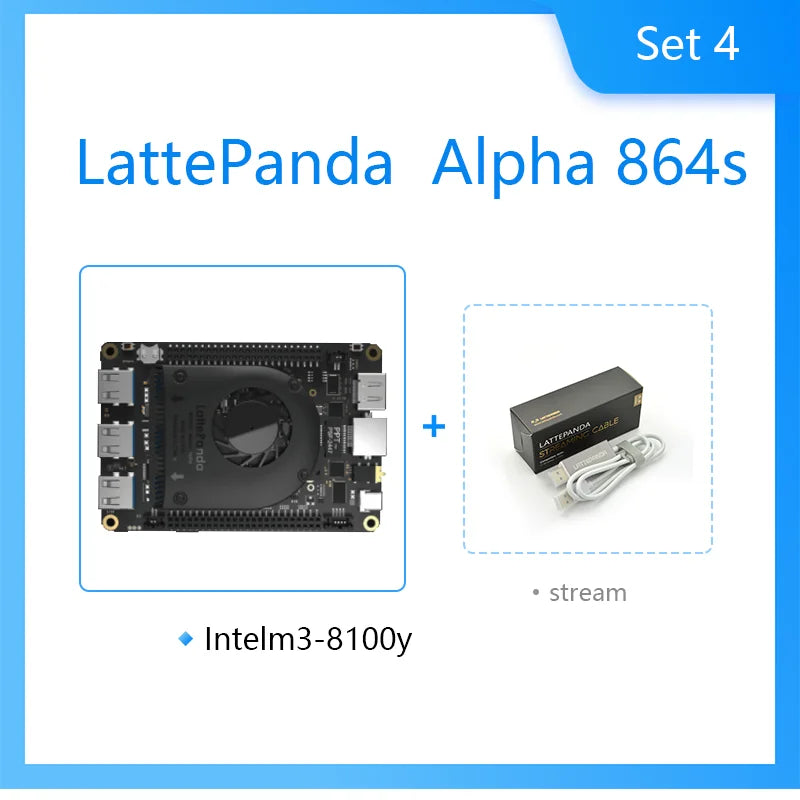

The Streaming Cable enables your Windows-enabled LattePanda device to act like a USB on a Mac or Linux system. Just plug & play into your Apple/Linux device! The PiP (Picture in Picture) form also eliminates the switching/use of dual mouse and HDMI to connect different systems for seamless interaction of two different systems.

FEATURES

Solid Spec and Extreme Design
Dual OS Support – Windows / Linux Both
Ultimate Networking on Cloud and Things

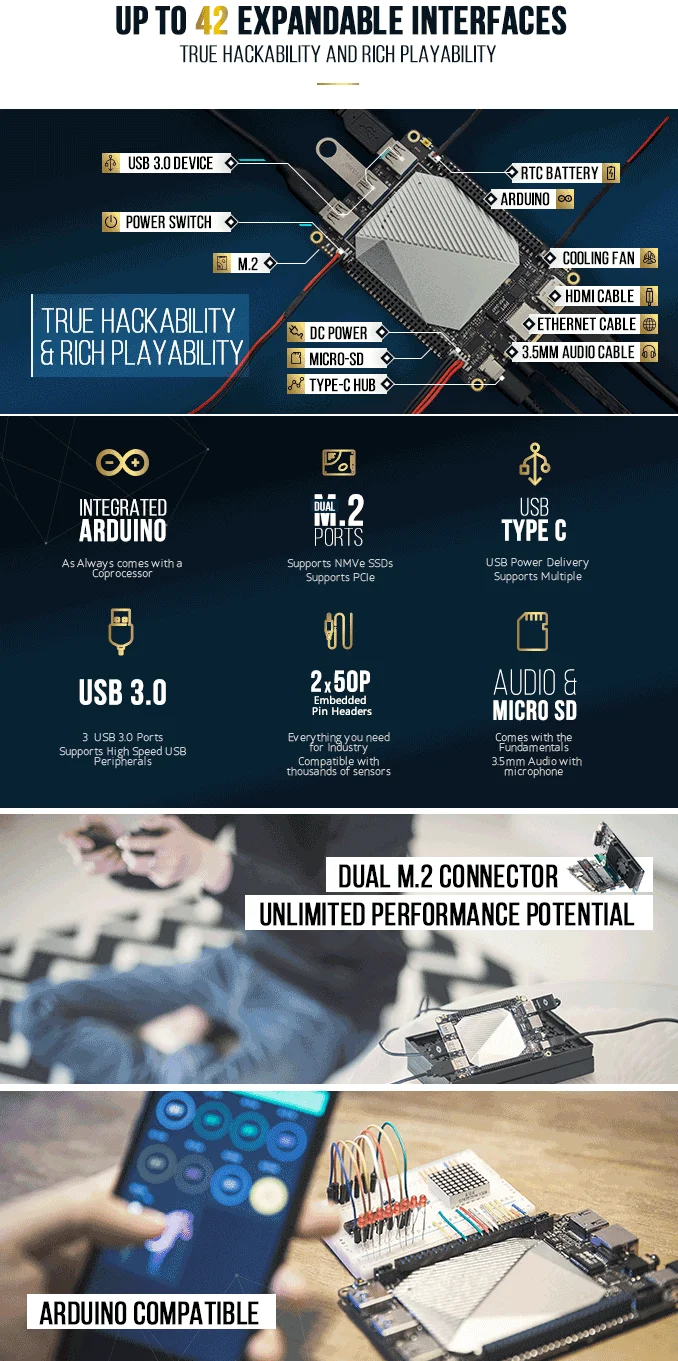

Up to 42 Extendable Interfaces bring Rich Playabilities
Ultra-Thin Design, Minimizing Space Occupation
Rebuild How to Code Efficiently with Multiple OS

SPECIFICATION

CPU：Intel 8th m3--8100y
Core：1.1-3.4GHz Dual-Core，Four-Thread
Benchmark (PassMark): Up to 4128, double computing power compared with same price range products in the market
Graphics：Intel HD Graphics 615, 300-900MHz
RAM：8G LPDDR3
External Memory：
1x M.2 M Key, PCIe 4x, Supports NVMe SSD and SATA SSD
1x M.2 E Key, PCIe 2x，Supports USB2.0, UART, PCM
Connectivity：
            WIFI 802.11 AC, 2.4G & 5G
            Dual Band Bluetooth 4.2
            Gigabyte Ethernet
USB Ports：
3x USB 3.0 Type A
1x USB Type C, supports PD, DP, USB 3.0
Display：
            HDMI Output
            Type-C DP Support
            Extendable eDP touch displays
Co-processor：Arduino Leonardo
GPIO & Other Features：2x 50p GPIOs including I2C, I2S, USB, RS232, UART, RTC，Power Management，Extendable power button，everything you need
OS Support：
Windows 10 Pro
Linux Ubuntu

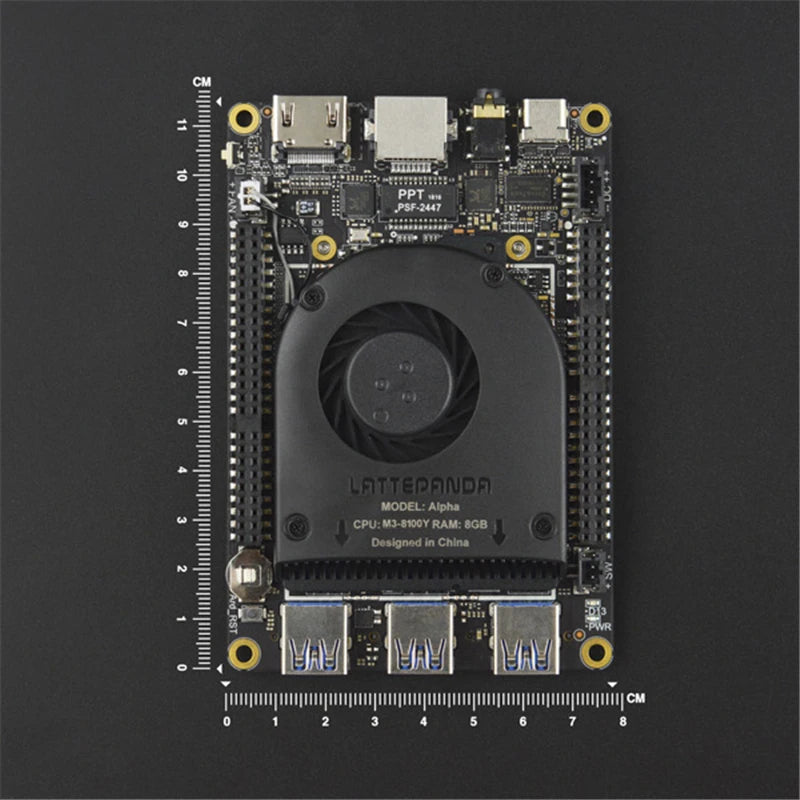

Dimension: 115mm * 78mm * 14 mm
