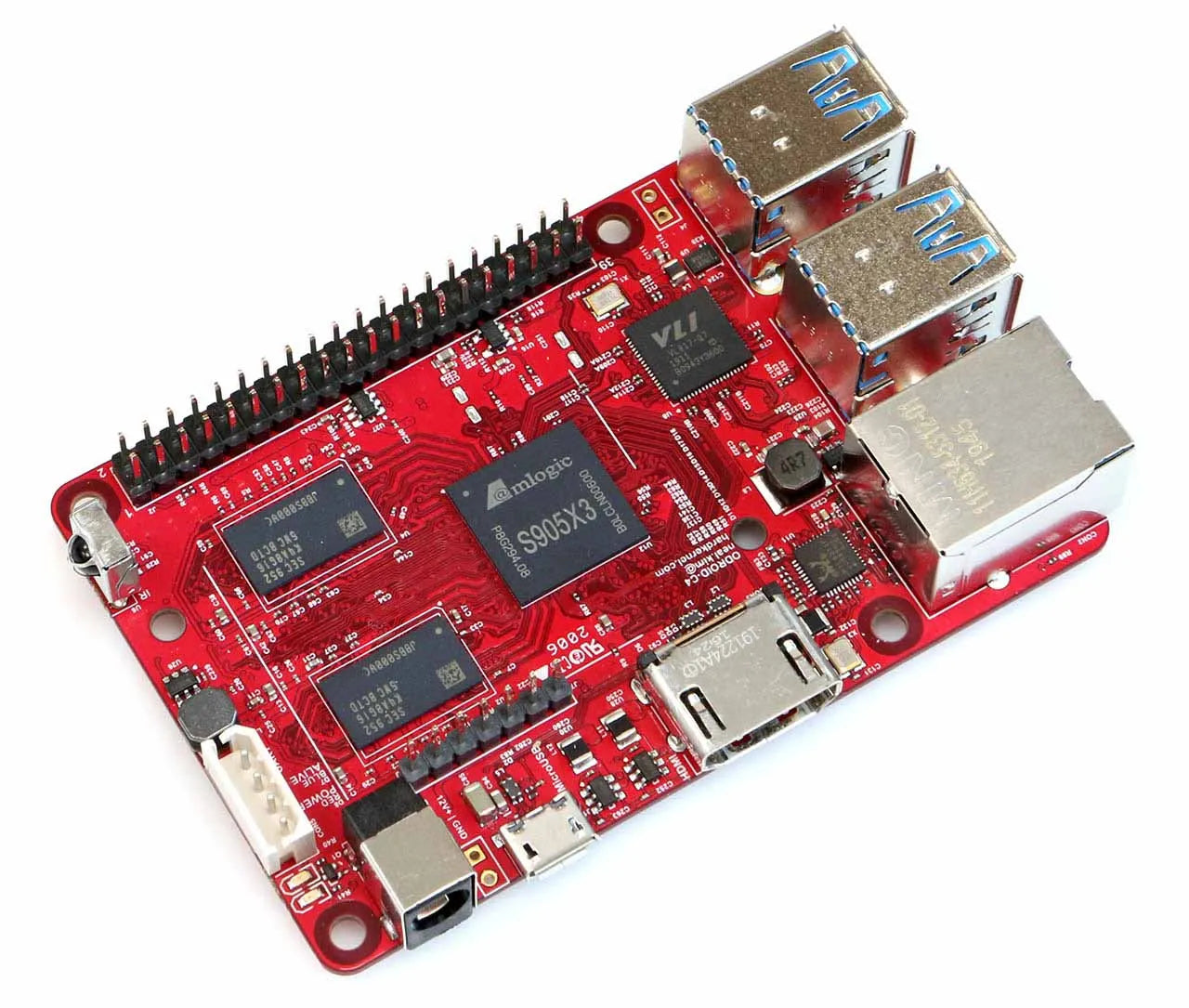

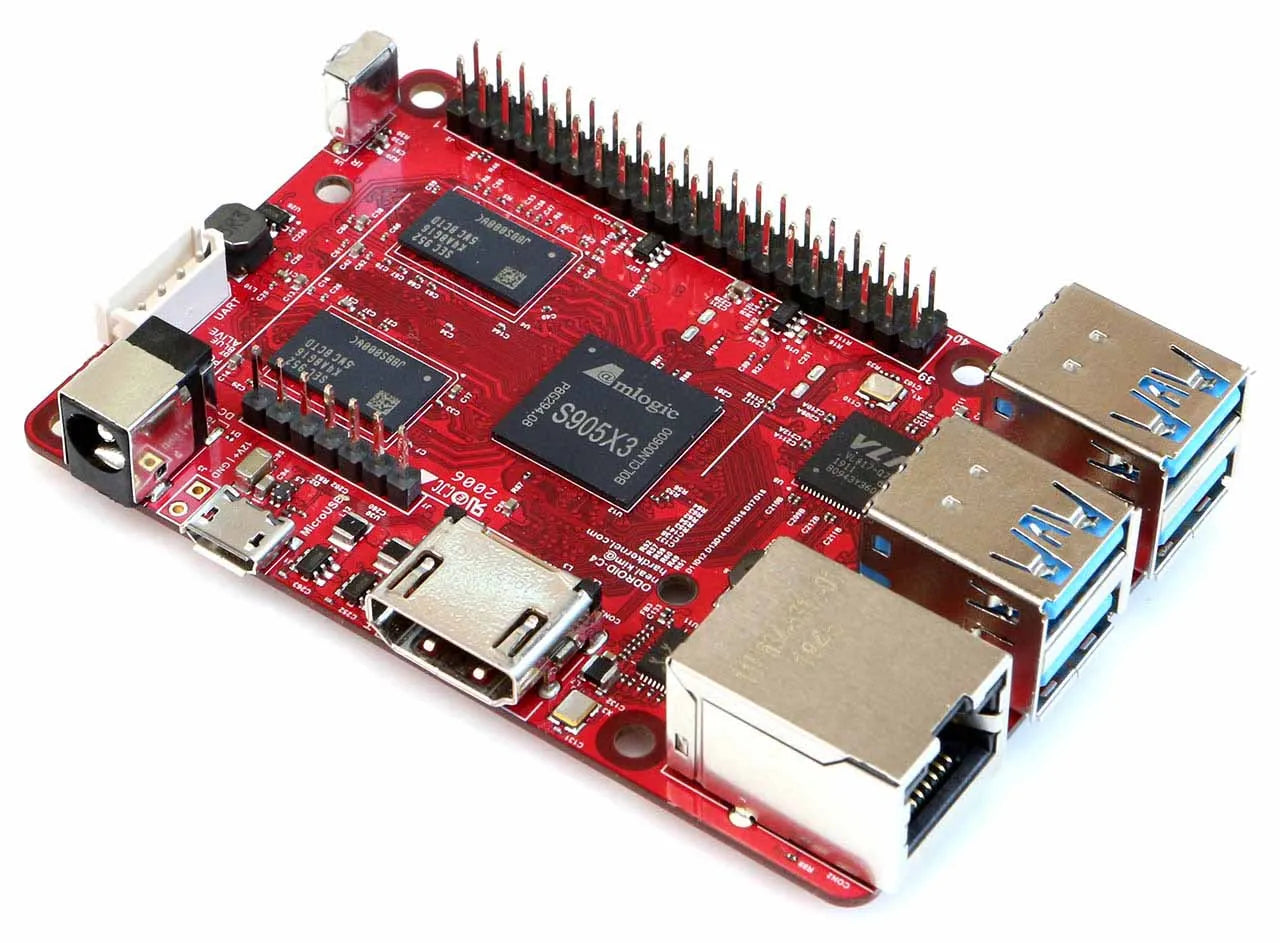

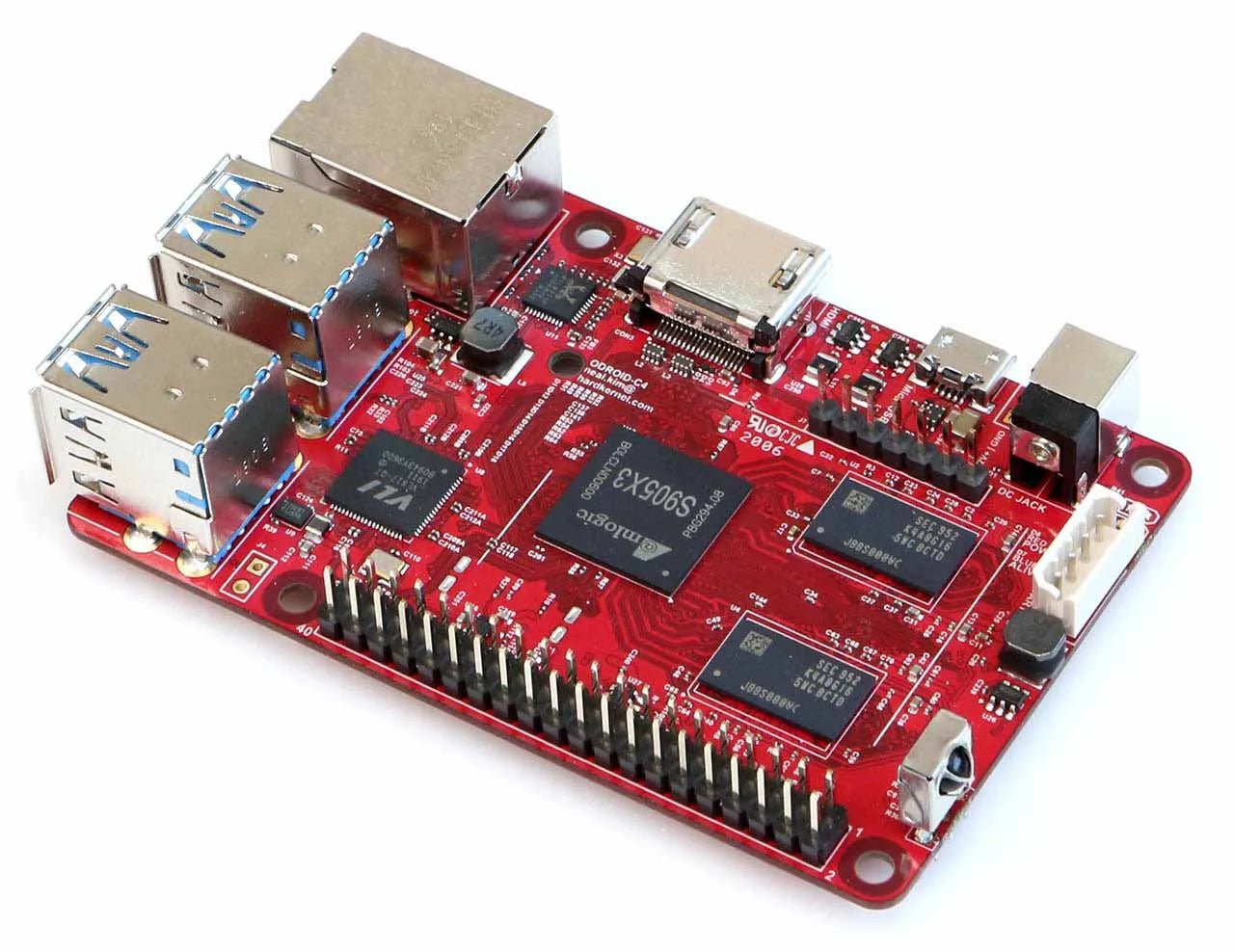

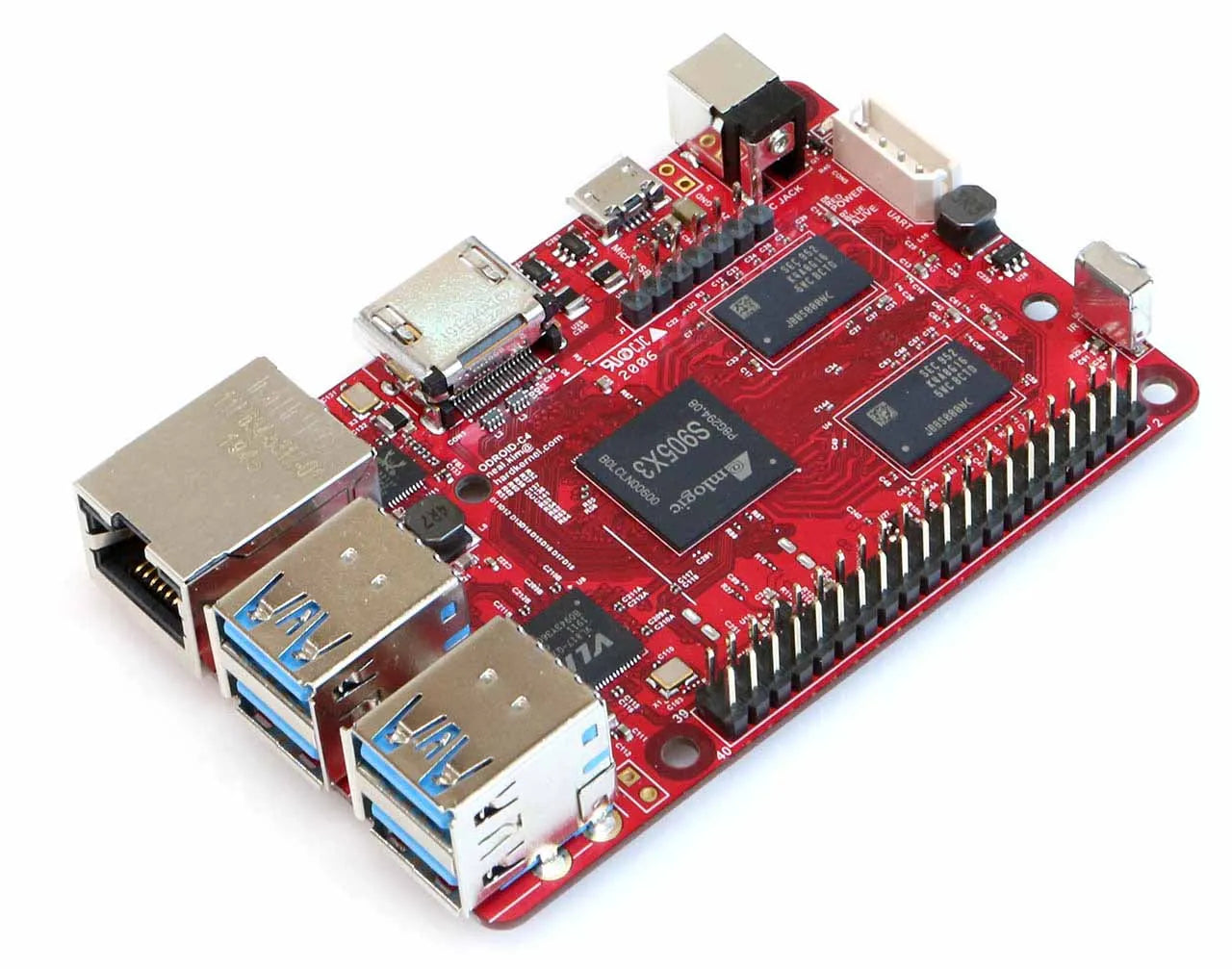

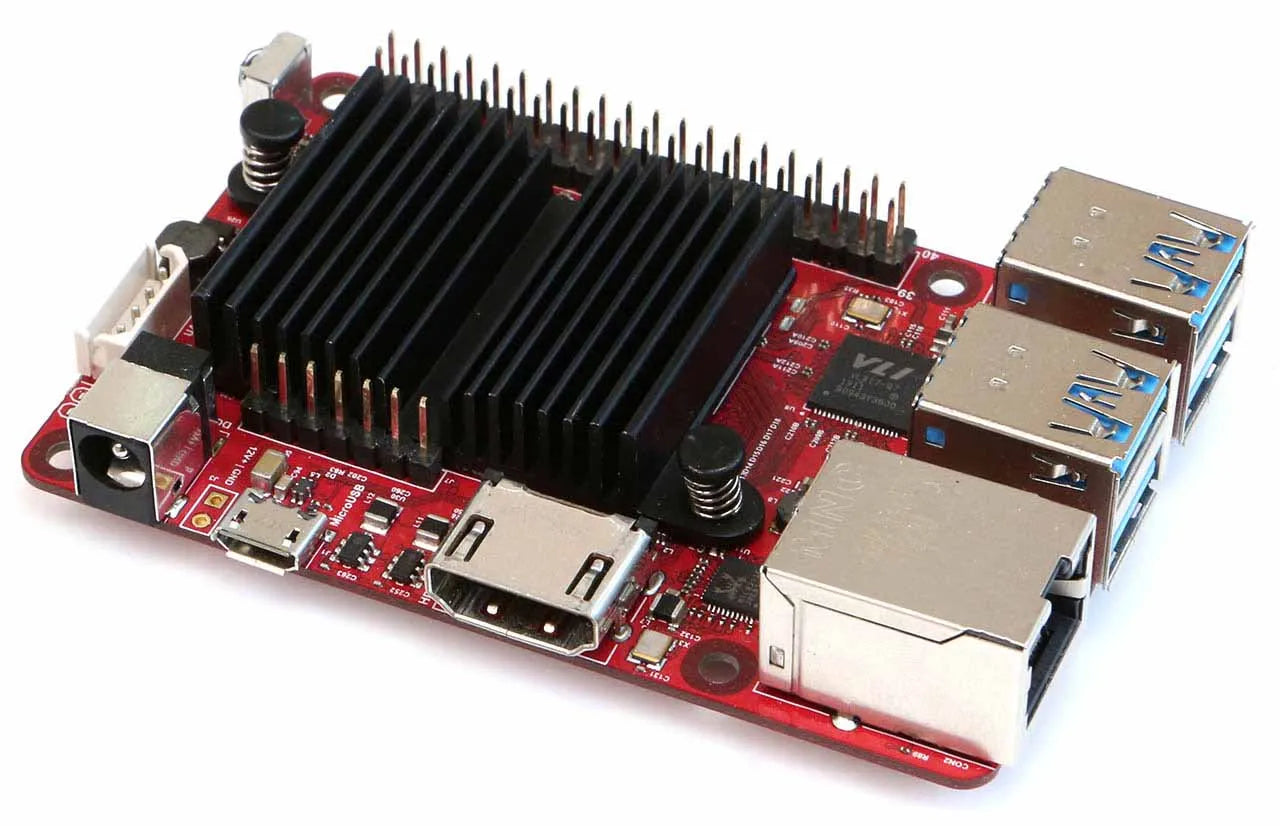

ODROID C4 - High-Performance, Energy-Efficient Single Board Computer

The ODROID C4 is a next-generation single board computer that outperforms its predecessor, the ODROID C2, with significant improvements in processing power, memory performance, and energy efficiency. Designed for robust and quiet operation, the ODROID C4 features a quad-core Cortex-A55 CPU and Mali-G31 GPU, delivering up to 55% faster system performance and 50% faster graphics processing compared to the previous model. Ideal for developers, tech enthusiasts, and DIY projects, this board offers a powerful and versatile computing platform.

Key Features:

• Processor: Quad-core Cortex-A55 CPU with a clock speed of 2.0GHz, ensuring high performance without thermal throttling.
• Graphics: Mali-G31 GPU, offering 50% faster graphics processing than its predecessor.
• Memory: 4GB DDR4 RAM, providing 1.6 times higher memory bandwidth compared to ODROID C2.
• Connectivity: Features 4 USB 3.0 ports, 1Gbps Ethernet, HDMI 2.0, and a MicroSD slot for expandable storage.
• Energy Efficiency: Built on a 12nm process, the S905X3 CPU ensures low power consumption and heat dissipation.
• GPIO: Fully supports a 3.3V GPIO interface, making it easier to connect various peripherals.

Technical Specifications:

• CPU: Amlogic S905X3 Quad-Core Cortex-A55 (2.0GHz)
• GPU: Mali-G31 MP2, 650MHz
• Memory: 4GB DDR4
• Storage: eMMC module socket, MicroSD slot
• Networking: 1 x RJ45 Ethernet port (10/100/1000Mbps)
• USB Ports: 4 x USB 3.0, 1 x Micro USB 2.0 (OTG)
• Video Output: 1 x HDMI 2.0
• Power Supply: DC power jack (5.5mm outer diameter, 2.1mm inner diameter)
• Additional Features: IR receiver, UART for system console, 40-pin GPIO, 7 additional GPIO pins, system LED indicators
• Power Consumption:
  • Idle: ≃ 0.18 Watt
  • Heavy Load: 3.1~3.3 Watt

Performance Highlights:

• CPU Performance: 40-55% faster than ODROID-C2 in multi-core performance benchmarks.
• GPU Performance: Mali-G31 GPU is ~50% faster than the Mali-450MP in ODROID-C2, ideal for graphics-intensive applications.
• Memory Bandwidth: DDR4 RAM runs at 1320MHz, offering 1.6 times the bandwidth of ODROID C2.

Power Efficiency:

The ODROID C4’s 12nm fabricated S905X3 CPU ensures low power consumption, making it an energy-efficient choice for a wide range of applications.

Compatibility:

The ODROID C4 supports a variety of operating systems, including Linux and Android, providing flexibility for different project needs.

Ideal for:

• Developers: Looking for a powerful and energy-efficient SBC for various applications.
• Tech Enthusiasts: Who need a high-performance platform for DIY projects.
• IoT and Embedded Systems: Benefiting from low power consumption and robust performance.

The ODROID C4 is a versatile, high-performance single board computer that combines power, efficiency, and ease of use, making it an excellent choice for both hobbyists and professionals.
